CaseIH Magnum 250 Engine

CaseIH Magnum 250 tractor photo
2014 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 250
Magnum 280
Engine Detail
wastegate turbocharger diesel
6-cylinder 24-valve
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)250 hp
186.4 kW
Maximum Power (gross)285 hp
212.5 kW
 320 hp (boost)
238.6 kW
Fuel systemelectronic high pressure common rail direct injection
Cooling systemBorgWarner Visctronic fan
Rated RPM2000
Starter volts12

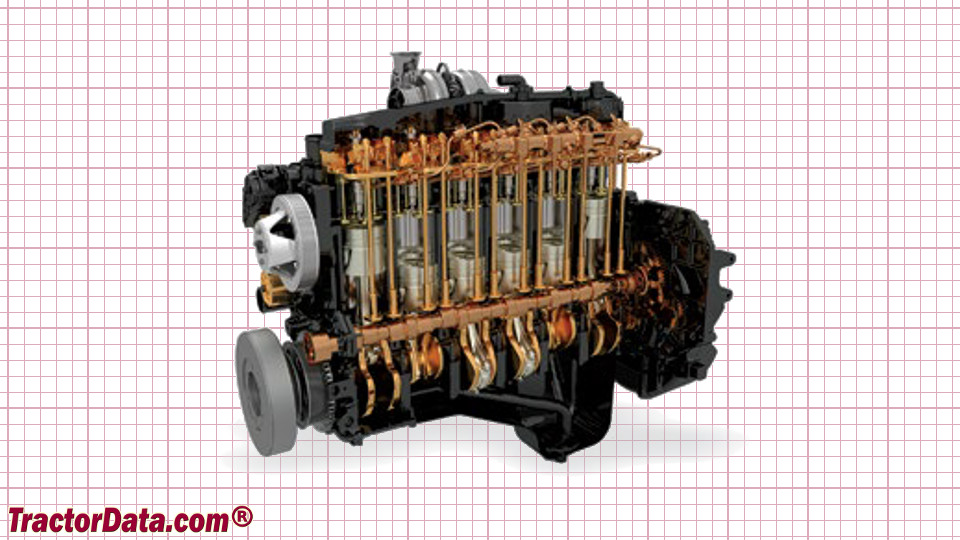

CaseIH Magnum 250 Engine
CaseIH Magnum 250 engine image
