Kubota B3350

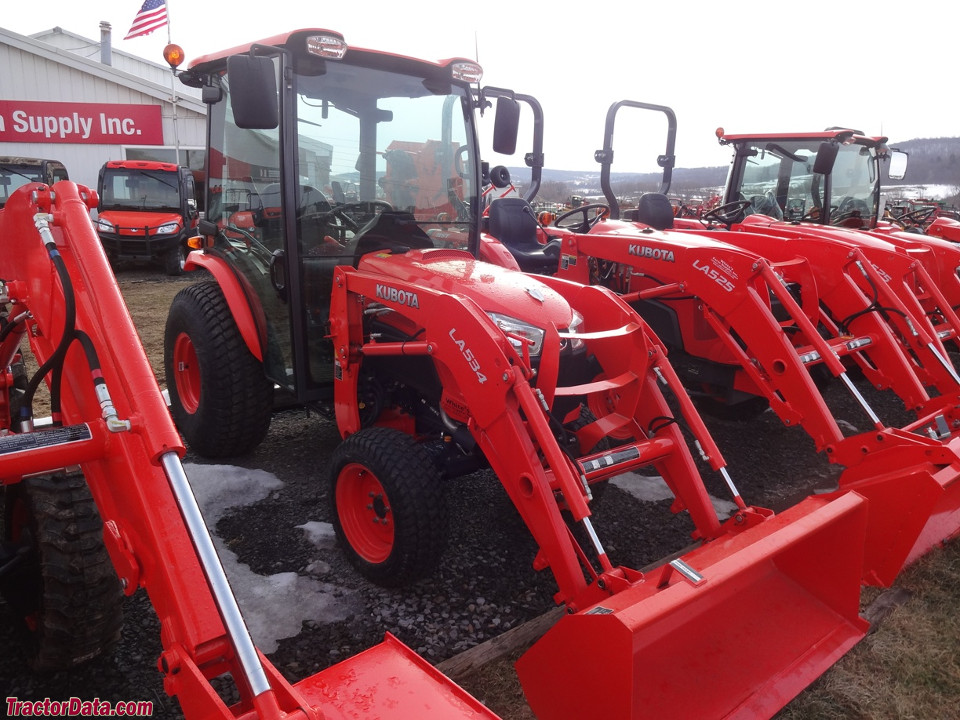

Kubota B3350 tractor photo
2013 -
B50 Series
Compact Utility tractor
B3030
Series:B2650B3350
Production
Manufacturer:Kubota
Type:Compact Utility tractor
Original price:$21,242 (2014 ROPS )
Original price:$28,865 (2014 Cab )
Variants
B3350HSD:ROPS
B3350HSDC:Cab
B3350SUHSD:special utility
Kubota B3350 Power
Engine (gross):33 hp
24.6 kW
PTO (claimed):27 hp
20.1 kW
Kubota B3350 Engine
Kubota 1.5L 4-cyl diesel
Fuel tank:7.3 gal
27.6 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:spur gear
Differential lock:standard
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmission:hydrostatic
Transmission details ...
Hydraulics
Type:open center
Valves:1
Pump flow:5 gpm
18.9 lpm
Total flow:8.7 gpm
32.9 lpm
Steering flow:3.7 gpm
14.0 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):2139 lbs
970 kg
Rear lift (at 24"/610mm):1676 lbs
760 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic
Rear RPM:540 (1.375)
Mid RPM:2500
Dimensions & Tires
Wheelbase:65.6 inches
166 cm
Weight:1896 to 2447 pounds
Front tire:7-12
Rear tire:12.4-16
Full dimensions and tires ...
Kubota B3350 attachments
60" mid-mount mower deck
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:60
Battery CCA:430
Battery volts:12
