| | 1987 - 2000 |
| 80 Series | | High-Clearance tractor |
|
| Transmissions overview |
| 12-speed synchromesh shuttle |
| 24-speed creeper |
| Transmission |
| Transmission: | Power Flow
|
| Type: | synchromesh shuttle
|
| Gears: | 12 forward and reverse
|
| Clutch: | 304.8mm dry disc
|

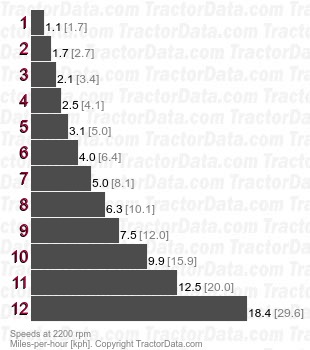

| Speeds |
| With 13.6R38 rear tires. Reverse speeds are 1% faster than forward. |
|
| Transmission |
| Type: | creeper
|
| Gears: | 24 forward and 12 reverse
|
| Page information |
| Last update: | October 14, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
