Tractors > John Deere > 3020

John Deere 3020 Tests



John Deere 3020 tractor photo
1964 - 1972
Model year
New Generation Series
Row-Crop tractor
Series map:
3020
4000
72.5hp*
107.7hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 848: diesel Powershift 2WD
NTTL 940: diesel Syncro-Range 2WD
NTTL 1010: gasoline Powershift 2WD
NTTL 1011: gasoline Syncro-Range 2WD
Nebraska Tractor Test 848

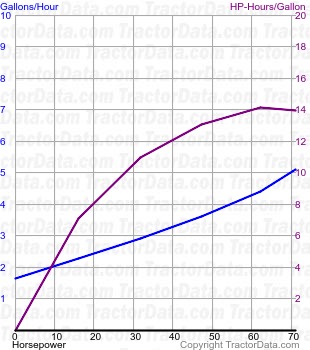

3020 fuel use from test 848
Nebraska Tractor Test 848
Diesel Powershift 2WD
September 23 - October 2, 1963
Link: Nebraska Tractor Test 848 file
PTO performance
Power at rated engine speed65.28 hp
48.7 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed59.25 hp
44.2 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power54.77 hp
40.8 kW
Fuel use5.0 gal/hour
18.9 l/hour
Gear 4 used for power test.
Max pull7536 lbs
3418 kg
Gear 2 used for pull test.
Nebraska Tractor Test 940

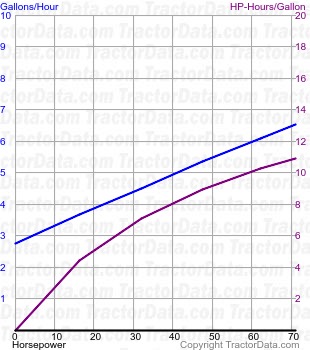

3020 fuel use from test 940
Nebraska Tractor Test 940
Diesel Syncro-Range 2WD
May 17 - 25, 1966
Link: Nebraska Tractor Test 940 file
PTO performance
Power at rated engine speed71.26 hp
53.1 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed64.32 hp
48.0 kW
Fuel use4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power61.47 hp
45.8 kW
Fuel use4.9 gal/hour
18.5 l/hour
Gear 4 used for power test.
Max pull7596 lbs
3445 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1010

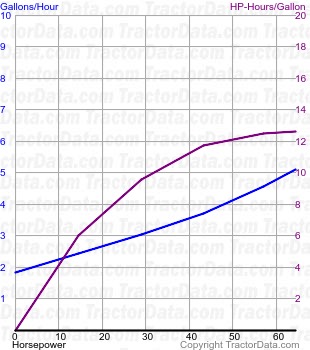

3020 fuel use from test 1010
Nebraska Tractor Test 1010
Gasoline Powershift 2WD
May 13 - June 2, 1969
Link: Nebraska Tractor Test 1010 file
PTO performance
Power at rated engine speed67.13 hp
50.1 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed62.63 hp
46.7 kW
Fuel use6.0 gal/hour
22.7 l/hour
Drawbar performance
Max power55.79 hp
41.6 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 4 used for power test.
Max pull8107 lbs
3677 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1011

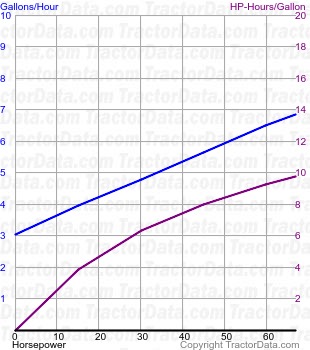

3020 fuel use from test 1011
Nebraska Tractor Test 1011
Gasoline Syncro-Range 2WD
May 13 - June 2, 1969
Link: Nebraska Tractor Test 1011 file
PTO performance
Power at rated engine speed71.37 hp
53.2 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed66.11 hp
49.3 kW
Fuel use5.9 gal/hour
22.3 l/hour
Drawbar performance
Max power61.26 hp
45.7 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 9.40 used for power test.
Max pull7804 lbs
3539 kg
Gear 2 used for pull test.
