Branson 3520R
|
|
| Production | |
| Manufacturer | Branson (a part of Kukje) |
| Compact Utility tractor | |
| Branson 3520R Engine | |
| Kukje 1.7L 3-cyl diesel | |
| Fuel tank | 9.3 gal 35.2 L |
 Engine details ... | |
| Branson 3520R Transmission | |
| 12-speed syncro shuttle | |
 Transmission details ... |
| Branson 3520R Power | |
| Engine | 35 hp 26.1 kW |
| PTO (claimed) | 29 hp 21.6 kW |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Wet disc brakes | |
| Two-post foldable ROPS. | |
| Photos | |
 | |
 Branson 3520R photos... | |
| Hydraulics | |
| Type | open center |
| Mid valves | 2 |
| Pump flow | 8.9 gpm 33.7 lpm |
| Steering flow | 4.8 gpm 18.2 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift | 3306 lbs 1499 kg |
| Rear Arms | telescopic lower arms |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear RPM | 540/790 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 70.9 inches 180 cm |
| Weight | 4053 lbs 1838 kg |
| Front tire | 9.5x16 |
| Rear tire | 12.4x28 |
 Full dimensions and tires ... | |
| Branson 3520R attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 3520R Serial Numbers |
| 3520R Serial Location | |
 | |

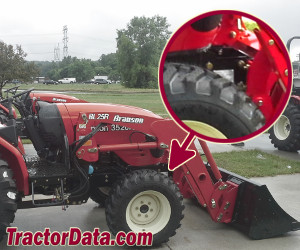

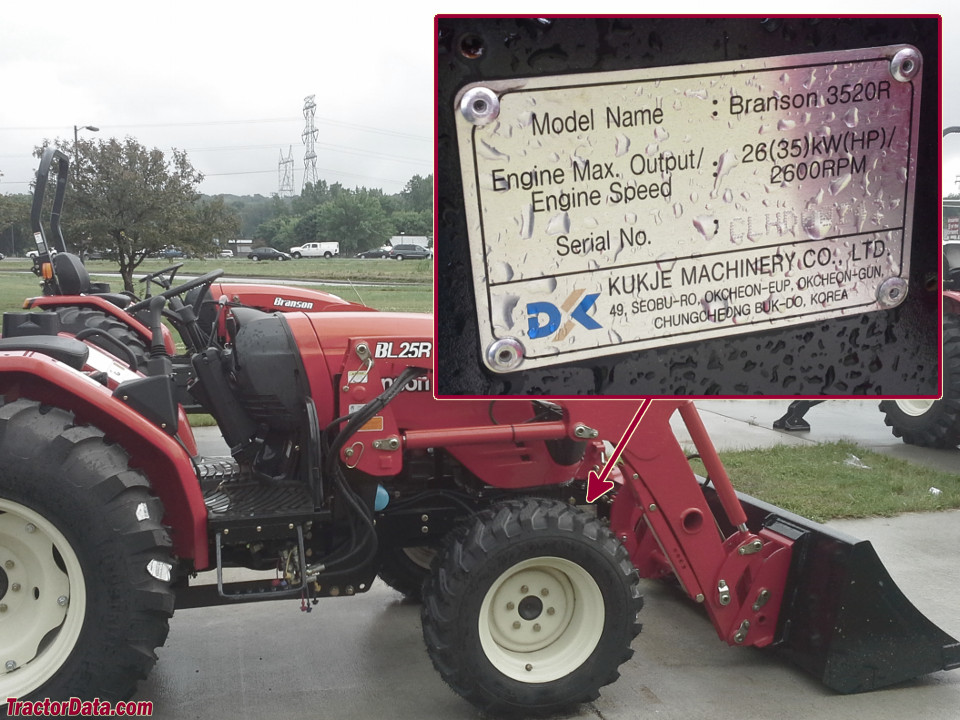

| Serial number plate on the front-right of the Branson 3520R tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| 20 Series Tractors published in 2015, by Branson | |
| 20 Series Tractors published in 2018, by Branson |
