International Harvester 434

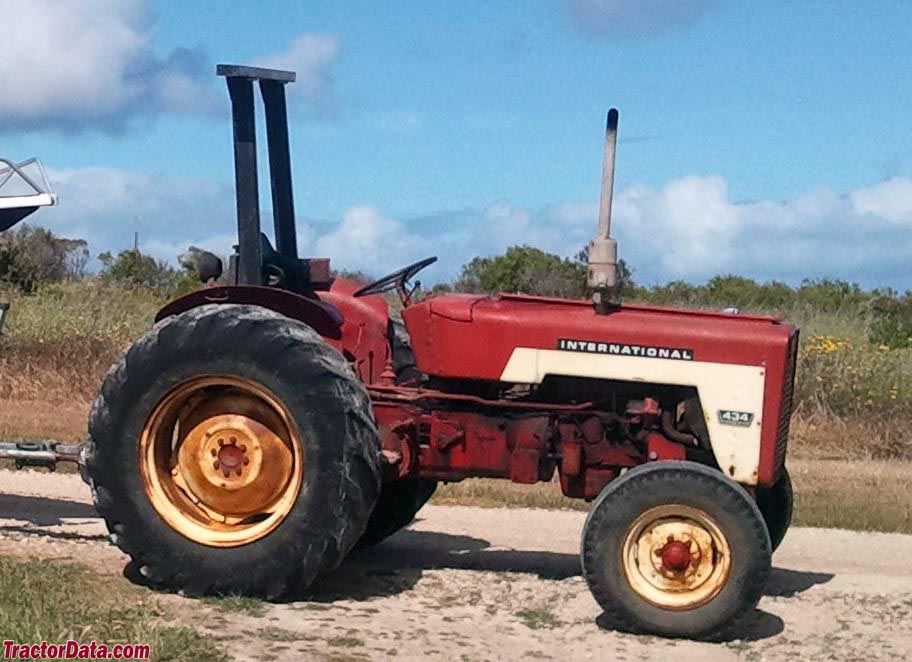

International Harvester 434 tractor photo
1966 - 1972
Utility tractor
Production
ManufacturerInternational Harvester
Utility tractor
Built in Geelong, Australia
International Harvester 434 Engine
International Harvester 2.5L 4-cyl diesel
Fuel tank12.7 gal
48.1 L
Engine details ...
International Harvester 434 Power
Engine43 hp
32.1 kW
Drawbar (claimed)35 hp
26.1 kW
Belt (claimed)36.6 hp
27.3 kW
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Hydraulics
Pump flow7.0 gpm
26.5 lpm
Tractor hitch
Rear lift2579 lbs
1169 kg
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase76.38 inches
194 cm
Weight4630 lbs
2100 kg
Front tire7.50-16
Rear tire12.4-32
Full dimensions and tires ...
434 Serial Numbers
1966501
1967601
19681971
19692902
19703877
19714747
19725713
Final5946

FAQ: How to read a serial number table.
Electrical
Groundpositive
References
434 references literature
International Harvester Tractors & Equipment in Australia & New Zealand by Graeme Quick
