John Deere 6125M

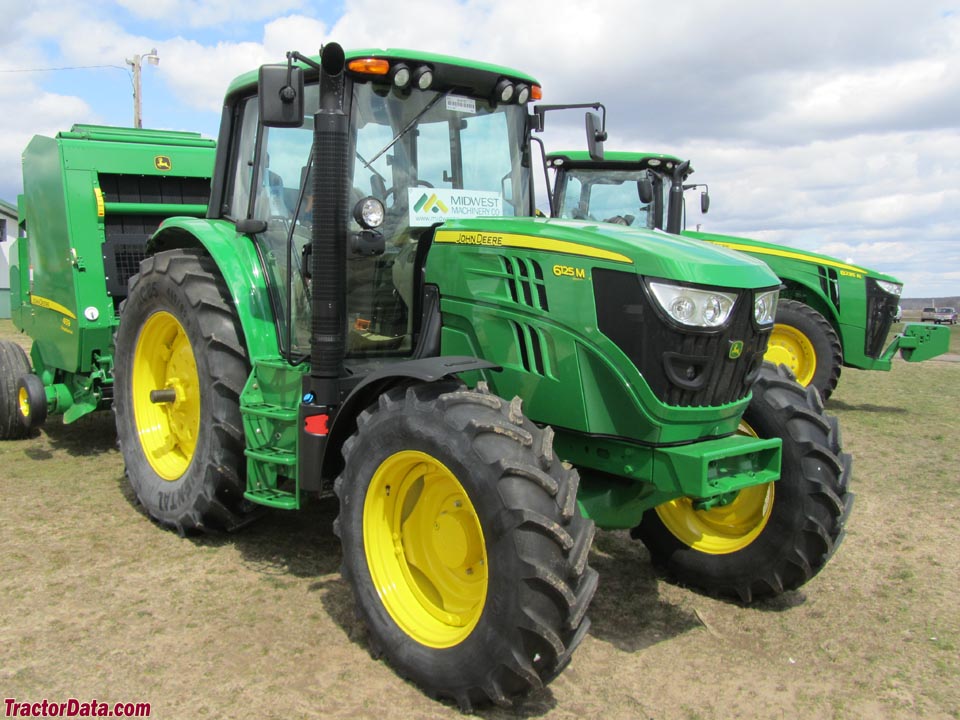

John Deere 6125M tractor photo
2013 - 2015
6M Series
Utility tractor
Series map:
6115M
6125M
6140M
115.0hp
125.0hp
140.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price$74,324 (2014 SyncroPlus ROPS 2WD )
$101,397 (2014 AutoQuad Cab 4WD )
John Deere 6125M Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6125M Transmissions
12-speed fully synchronized
16-speed partial power shift
24-speed partial power shift
Transmission details ...
John Deere 6125M Power
Engine (gross)125 hp
93.2 kW
Engine (max)130 hp
96.9 kW
PTO (claimed)102 hp
76.1 kW
Drawbar (tested)98.31 hp
73.3 kW
PTO (tested)114.88 hp
85.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockElectro-hydraulic rear
 limit-slip front (4WD)
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional); AutoTrac (optional)
Capacity
Fuel58 gal
219.5 L
Hydraulic system13.7 gal
51.9 L
Hydraulics
Typeopen center pressure compensated
 closed center load sensing pressure and flow compensated (optional)
Capacity13.7 gal
51.9 L
Pressure2900 psi
200.0 bar
Rear valves1 to 3
Mid valves2 or 3 (optional)
Pump flow21.1 gpm
79.9 lpm
 30 gpm (optional)
113.6 lpm
SCV flow21.1 gpm
79.9 lpm
Tractor hitch
Rear TypeII/IIIN
Controlelectrohydraulic load sensing
Rear lift (at 24"/610mm)5154 lbs
2337 kg
 6247 lbs (optional)
2833 kg
DrawbarCat. II
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@1932
1000@1932
Dimensions & Tires
Wheelbase101.6 inches
258 cm
Weight11519 lbs
5225 kg
Front tire10.00-16
Rear tire460/85R34 (2WD)
Full dimensions and tires ...
6125M Serial Number Location
John Deere 6125M serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
 150 (optional)
Charging volts14
Battery volts12
References
6125M references literature
6M Series Tractors published in 2013, by John Deere
Specialty Tractors published in 2014, by John Deere
