New Holland T5.105 Tests

New Holland T5.105 tractor photo
2013 - 2016
T5 Series
Utility tractor
Series map:
OCED Tractor Test 2805A

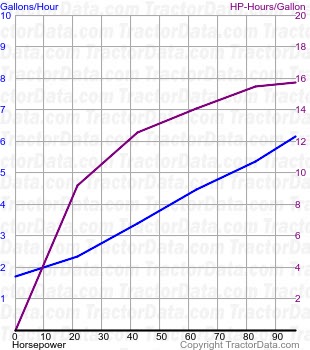

T5.105 fuel use from test 953
OCED Tractor Test 2805A
Diesel 12-speed 4WD
June 2013 - August 2013,
Link: OCED Tractor Test 2805A file
PTO performance
Max power99.3 hp
74.0 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated engine speed96.6 hp
72.0 kW
Fuel use6.1 gal/hour
23.1 l/hour
Power at rated PTO speed99.3 hp
74.0 kW
Fuel use5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power70.3 hp
52.4 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 2M used for power test.
Max pull8250 lbs
3742 kg
Gear 2L used for pull test.
