Massey Ferguson 7624

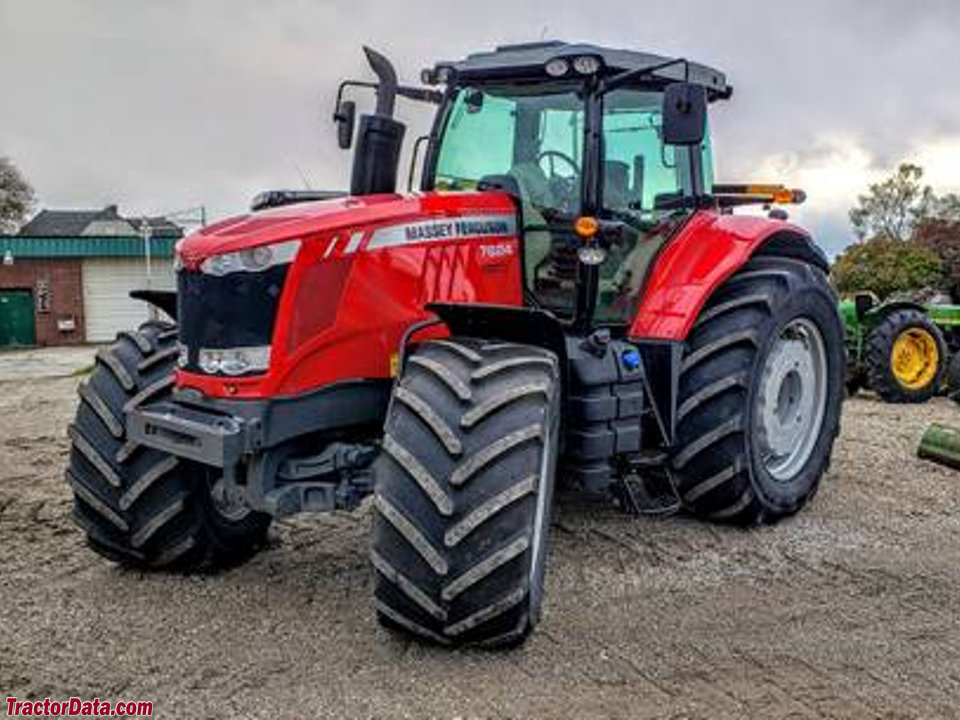

Massey Ferguson 7624 tractor photo
2013 - 2014
7600 Series
Row-Crop tractor
7497
Series:762276247626
7724
Production
Manufacturer:Massey Ferguson (a part of AGCO)
Type:Row-Crop tractor
Factory:Beauvais, France
Massey Ferguson 7624 Power
Engine (net):220 hp
164.1 kW
PTO (claimed):180 hp
134.2 kW
Drawbar (tested):158.5 hp
118.2 kW
PTO (tested):212.0 hp
158.1 kW
power test details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic standard
Steering:hydrostatic power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic (optional)
 pneumatic (optional)
Cab:Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional)
 Auto-Guide 3000 (optional)
Transmission:24-speed six-speed power shift
Transmission details ...
Capacity
Fuel:114 gal
431.5 L
Exhaust fluid (DEF):14 gal
53.0 L
Hydraulic system:26.4 gal
99.9 L
Hydraulics
Type:closed-center load sensing (CCLS)
Capacity:26.4 gal
99.9 L
Pressure:2900 psi
200.0 bar
Valves:3 (mechanical)
 4 (2 mech, 2 elec)
 4 (electric)
SCV flow:24.3 gpm
92.0 lpm
Total flow:29 gpm
109.8 lpm
 39 gpm
147.6 lpm (optional)
Tractor hitch
Control:electronic lower link draft sensing
Rear lift (at ends):14000 lbs
6350 kg (Dyna-6)
 13715 lbs
6221 kg (Dyna-VT)
Front Hitch:optional
Drawbar:Cat. II with drop pin
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/1000 (1.375)
 540/540E/1000 (1.375)
 540/1000/1000E (1.375)
 540/540E/1000/1000E (1.375)
Engine RPM:540@1890 (Dyna-6)
540@2065 (Dyna-VT)
540E@1524 (Dyna-6)
540E@1590 (Dyna-VT)
1000@2000 (Dyna-6)
1000@2034 (Dyna-VT)
1000E@1595
Dimensions & Tires
Wheelbase:117 inches
297 cm
Weight:15990 to 18860 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
 175 (option)
 240 (dual 120 option)
Batteries:2
Battery volts:12
