Cabelas LM35
|
|
| Production | |
| Distributor | Cabelas |
| Manufacturer | TYM |
| Compact Utility tractor | |
| Built in South Korea | |
| Original price | $21,999 (2013 shuttle ) |
| $23,499 (2013 hydrostatic ) | |
| $17,999 (2014 shuttle ) | |
| $20,099 (2014 hydrostatic ) | |
| Variants | |
| LM35 | shuttle |
| LM35H | hydrostatic |
| Cabelas LM35 Engine | |
| Mitsubishi 1.8L 4-cyl diesel | |
 Engine details ... |
| Cabelas LM35 Transmissions | |
| 12-speed synchronized shuttle | |
| hydrostatic | |
 Transmission details ... |
| Cabelas LM35 Power | |
| Engine (gross) | 35 hp 26.1 kW |
| PTO (claimed) | 29 hp (shuttle) 21.6 kW |
| 26 hp (hydro) 19.4 kW | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Two-post foldable ROPS. | |
| Photos | |
 | |
 Cabelas LM35 photos... | |
| Capacity | |
| Fuel | 9 gal 34.1 L |
| Hydraulic system | 8.5 gal (shuttle) 32.2 L |
| 9.2 gal (hydro) 34.8 L | |
| Front axle | 8.7 qts 8.2 L |
| Hydraulics | |
| Type | open center |
| Capacity | 8.5 gal (shuttle) 32.2 L |
| 9.2 gal (hydro) 34.8 L | |
| Valves | 1 |
| Pump flow | 6.3 gpm 23.8 lpm |
| Total flow | 10.6 gpm (shuttle) 40.1 lpm |
| 10.9 gpm (hydro) 41.3 lpm | |
| Steering flow | 4.3 gpm (shuttle) 16.3 lpm |
| 4.6 gpm (hydro) 17.4 lpm | |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 2646 lbs 1200 kg |
| Rear lift (at 24"/610mm) | 1764 lbs 800 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro hydraulic |
| Rear PTO Type | 540 (1.375) |
| 540/1000 (1.375) | |
| Mid PTO | independent |
| Mid PTO Type | 2000 |
| Dimensions & Tires | |
| Wheelbase | 64.5 inches 163 cm |
| Weight | 3140 lbs 1424 kg |
| Front tire | 7-16 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Cabelas LM35 attachments | |
| front-end loader | |
 Attachment details ... |

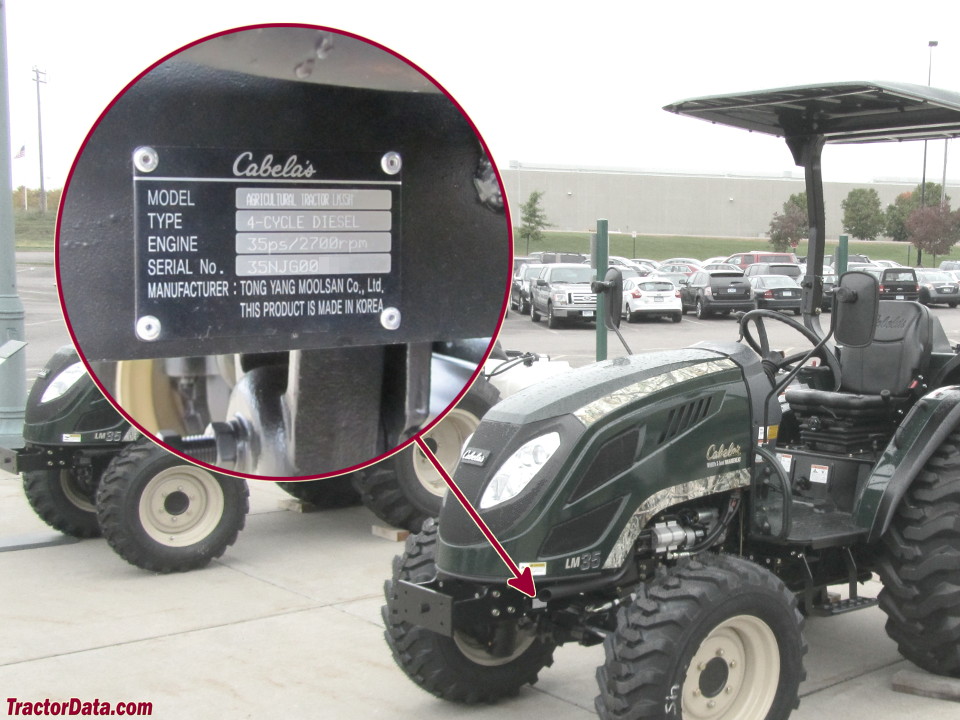

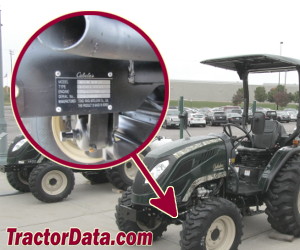

| LM35 Serial Number Location | |
 | |
| Tractor frame, left side, above front axle. |
| References | |
 | |
| Spring Wildlife & Land Management Catalog published in 2014, by Cabelas | |
| Summer Wildlife & Land Management Catalog published in 2014, by Cabelas |
