Tractors > CaseIH > Steiger 500

CaseIH Steiger 500 Tests



CaseIH Steiger 500 tractor photo
2011 - 2023
Model year
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 470
Steiger 500
Steiger 540
470.0hp
500.0hp
535.0hp
OCED Tractor Test 2095

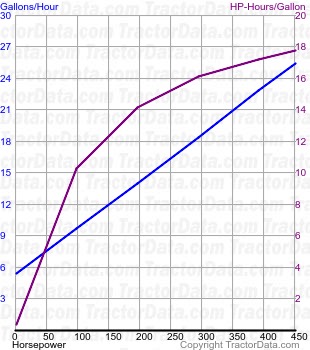

Steiger 500 fuel use from test 960
OCED Tractor Test 2095
Diesel 16-speed 4WD
September 15 - October 2, 2014
Link: OCED Tractor Test 2095 file
PTO performance
Max power507.22 hp
378.2 kW
Fuel use27.2 gal/hour
103.0 l/hour
Power at rated engine speed450.22 hp
335.7 kW
Fuel use25.4 gal/hour
96.1 l/hour
Power at rated PTO speed501.03 hp
373.6 kW
Fuel use26.5 gal/hour
100.3 l/hour
Drawbar performance
Max power416.19 hp
310.4 kW
Fuel use25.3 gal/hour
95.8 l/hour
Gear 5 used for power test.
Max pull46283 lbs
20993 kg
Gear 1 used for pull test.
