CaseIH Steiger 400 Rowtrac Tests

CaseIH Steiger 400 Rowtrac tractor photo

2013

Steiger Rowtrac Series

Agricultural Crawler tractor

Series map:

Steiger 350 Rowtrac

Steiger 400 Rowtrac

Steiger 450 Rowtrac

350.0hp

400.0hp

450.0hp

OCED Tractor Test 2070

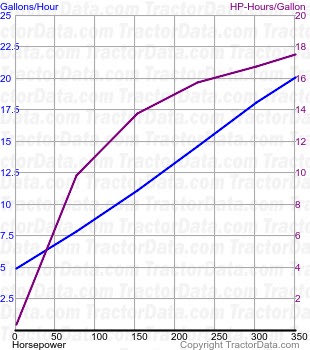

Steiger 400 Rowtrac fuel use from test 888

OCED Tractor Test 2070
Diesel 16-speed crawler September 24 - 30, 2013 Link: OCED Tractor Test 2070 file
PTO performance
Max power	400.72 hp 298.8 kW
Fuel use	21.3 gal/hour 80.6 l/hour
Power at rated engine speed	350.21 hp 261.2 kW
Fuel use	20.0 gal/hour 75.7 l/hour
Power at rated PTO speed	386.12 hp 287.9 kW
Fuel use	21.1 gal/hour 79.9 l/hour
Drawbar performance
Max power	306.20 hp 228.3 kW
Fuel use	20.1 gal/hour 76.1 l/hour
Gear 4 used for power test.
Max pull	38019 lbs 17245 kg
Gear 1 used for pull test.
