CaseIH Steiger 350 Rowtrac Tests

CaseIH Steiger 350 Rowtrac tractor photo

2013

Steiger Rowtrac Series

Agricultural Crawler tractor

Series map:

Steiger 350 Rowtrac

Steiger 400 Rowtrac

350.0hp

400.0hp

OCED Tractor Test 2069

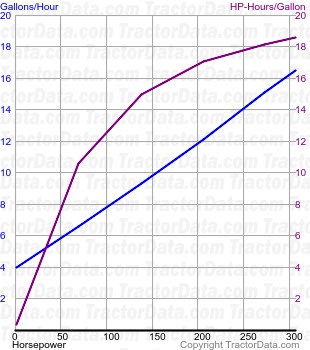

Steiger 350 Rowtrac fuel use from test 887

OCED Tractor Test 2069
Diesel 16-speed crawler September 16 - 24, 2013 Link: OCED Tractor Test 2069 file
PTO performance
Max power	346.42 hp 258.3 kW
Fuel use	18.0 gal/hour 68.1 l/hour
Power at rated engine speed	306.42 hp 228.5 kW
Fuel use	16.5 gal/hour 62.5 l/hour
Power at rated PTO speed	306.42 hp 228.5 kW
Fuel use	16.5 gal/hour 62.5 l/hour
Drawbar performance
Max power	261.07 hp 194.7 kW
Fuel use	16.6 gal/hour 62.8 l/hour
Gear 4 used for power test.
Max pull	35234 lbs 15982 kg
Gear 1 used for pull test.
