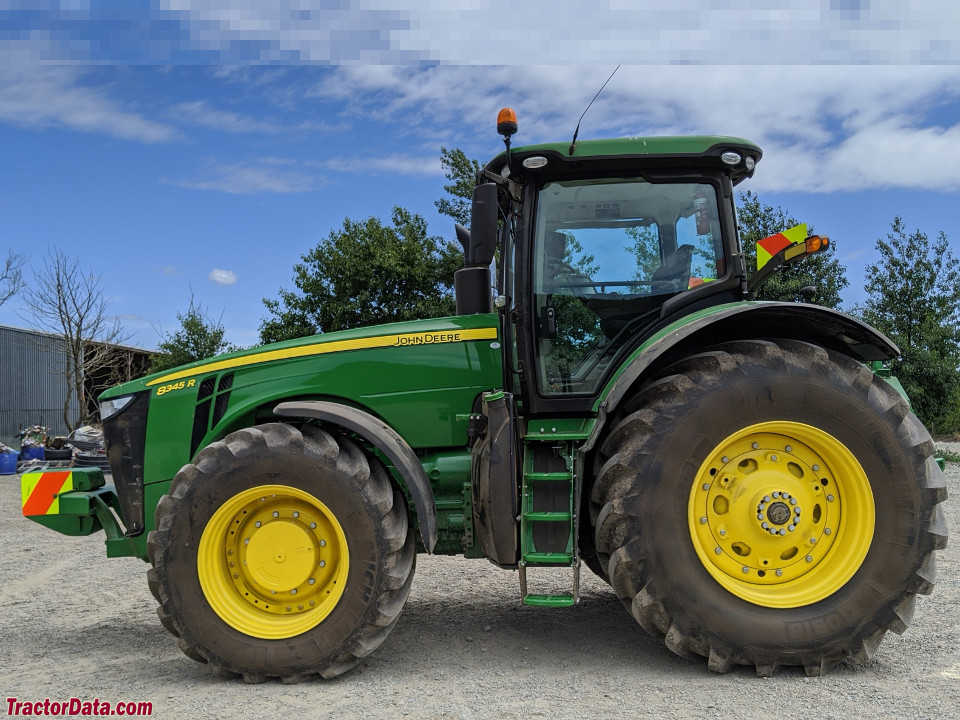

John Deere 8345R
|
|
| Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Waterloo, Iowa, USA |
| John Deere 8345R Power | |
| Engine (gross): | 345 hp 257.3 kW |
| Engine (max): | 380 hp 283.4 kW |
| PTO (claimed): | 291 hp 217.0 kW |
| 150 hp 111.9 kW (front) | |
| John Deere 8345R Engine | |
| John Deere 9.0L 6-cyl diesel | |
 Engine details ... |
| Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Differential lock: | hydraulic rear standard |
| hydraulic front with 1500 and ILS axles | |
| Steering: | hydrostatic power |
| Active Command steering optional | |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic (optional) |
| dual line air (optional) | |
| Cab: | CommandView III cab standard with air-conditioning. AutoTrac ready |
| JDLink | |
| ServiceADVISOR Remote | |
| Transmission: | infinitely variable transmission (IVT) |
 Transmission details ... | |
| Photos | |
 | |
 John Deere 8345R photos... | |
| Capacity | |
| Fuel: | 170.4 gal 645.0 L |
| 181.2 gal 685.8 L (G49 chassis) | |
| Exhaust fluid (DEF): | 6.8 gal 25.7 L |
| Hydraulic system: | 10.6 gal 40.1 L |
| 23.8 gal 90.1 L (optional) | |
| Hydraulics | |
| Type: | closed-center load sensing pressure flow compensated |
| Capacity: | 10.6 gal 40.1 L |
| 23.8 gal 90.1 L (optional) | |
| Rear valves: | 4 to 6 |
| Front valves: | 0 to 2 |
| Pump flow: | 60 gpm 227.1 lpm |
| 85 gpm 321.7 lpm (optional) | |
| SCV flow: | 35 gpm 132.5 lpm |
| 42 gpm 159.0 lpm (optional) | |
| Tractor hitch | |
| Rear Type: | IVN/III |
| Rear lift: | 15000 lbs 6804 kg |
| 20000 lbs 9072 kg (optional) | |
| Rear Arms: | hydraulic center link optional |
| Front Hitch: | optional |
| Front lift (at ends): | 11450 lbs 5193 kg |
| Drawbar: | Cat 4 |
| Cat 4 Heavy-Duty optional | |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.75) |
| 1000/1000E (1.75 optional) | |
| 540/1000 (1.375 optional) | |
| Front PTO: | optional independent |
| Front RPM: | 1000 (1.75) |
| 1000 (1.375) | |
| Dimensions & Tires | |
| Wheelbase: | 120.1 inches 305 cm |
| Weight: | 32691 lbs 14828 kg |
| Front tire: | 380/80R38 |
| Rear tire: | 480/80R50 |
 Full dimensions and tires ... | |
| 8345R Serial Numbers | |
| Location: | Serial number plate on the front-right of the tractor frame, above the front axle. |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 240 |
| Batteries: | 2 |
| Battery CCA: | 925 (each) |
| Battery volts: | 12 |
