John Deere 7290R

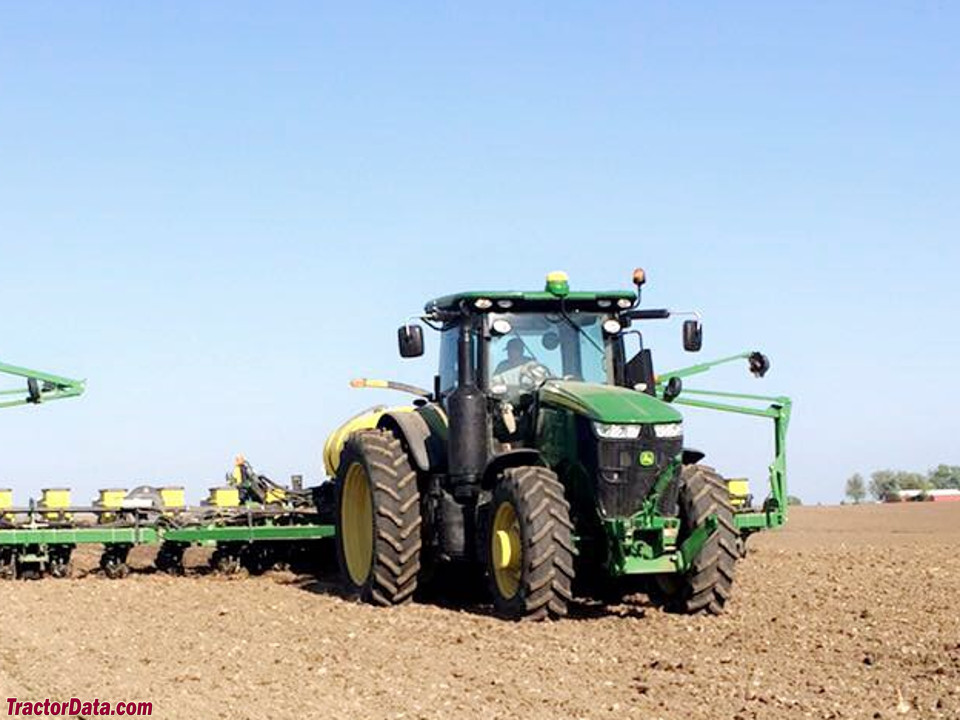

John Deere 7290R tractor photo
2014 - 2019
7R Series
Row-Crop tractor
7280R
Series:7270R7290R7310R
7R 290
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
Original price:$248,818 (2014 )
John Deere 7290R Power
Engine (gross):290 hp
216.3 kW
Engine (max):319 hp
237.9 kW
PTO (claimed):242 hp
180.5 kW
Drawbar (tested):223.85 hp
166.9 kW
PTO (tested):282.68 hp
210.8 kW
power test details ...
John Deere 7290R Engine
John Deere 9.0L 6-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:full-locking electro-hydraulic rear
 limited slip front
 electro-hydraulic front (optional)
Steering:hydrostatic power
 ActiveCommand Steering optional
Brakes:hydraulic wet disc
Trailer brakes:hydraulic (optional)
 dual-line air (optional)
Cab:CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.
Transmissions:23-speed full power shift
 infinitely variable transmission
Transmission details ...
Capacity
Fuel:125 gal
473.1 L (e23)
 131 gal
495.8 L (e23 optional)
 137 gal
518.5 L (IVT)
 143 gal
541.3 L (IVT optional)
Exhaust fluid (DEF):6.8 gal
25.7 L
Hydraulic system:17.2 gal
65.1 L
 5.3 gal
20.1 L (optional aux tank)
Hydraulics
Type:closed-center pressure and flow compensated
Capacity:17.2 gal
65.1 L
 5.3 gal
20.1 L (optional aux tank)
Pressure:2958 psi
204.0 bar
Rear valves:3 to 6
Mid valves:0 to 3
Front valves:0 to 2
Pump flow:43 gpm
162.8 lpm
 59 gpm
223.3 lpm *Optional. Actual measured flow was 58.3 GPM.
Rear SCV flow:35 gpm
132.5 lpm
Front SCV flow:33 gpm
124.9 lpm
Tractor hitch
Rear Type:III/IIIN
Control:electro-hydraulic draft sensing
Rear lift:22500 lbs
10206 kg
Rear Arms:hydraulic center link*Optional
Front Hitch:IIIN*Optional
Front lift (at ends):11464 lbs
5200 kg
Drawbar:Cat. 3 adjustable swinging drawbar. Optional heavy-duty support.
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1.75)
 540/1000 (1.375)
Front PTO:independent
Front RPM:1000 (1.375)
 1000 (1.75)
Dimensions & Tires
Wheelbase:115 inches
292 cm
Weight:27180 lbs
12328 kg
Front tire:380/80R38
Rear tire:480/80R50
Full dimensions and tires ...
7290R Serial Numbers
Location:Right side of tractor frame above front axle.
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
 240*Optional
Batteries:2
Battery CCA:925
Battery volts:12
Battery Group:31
