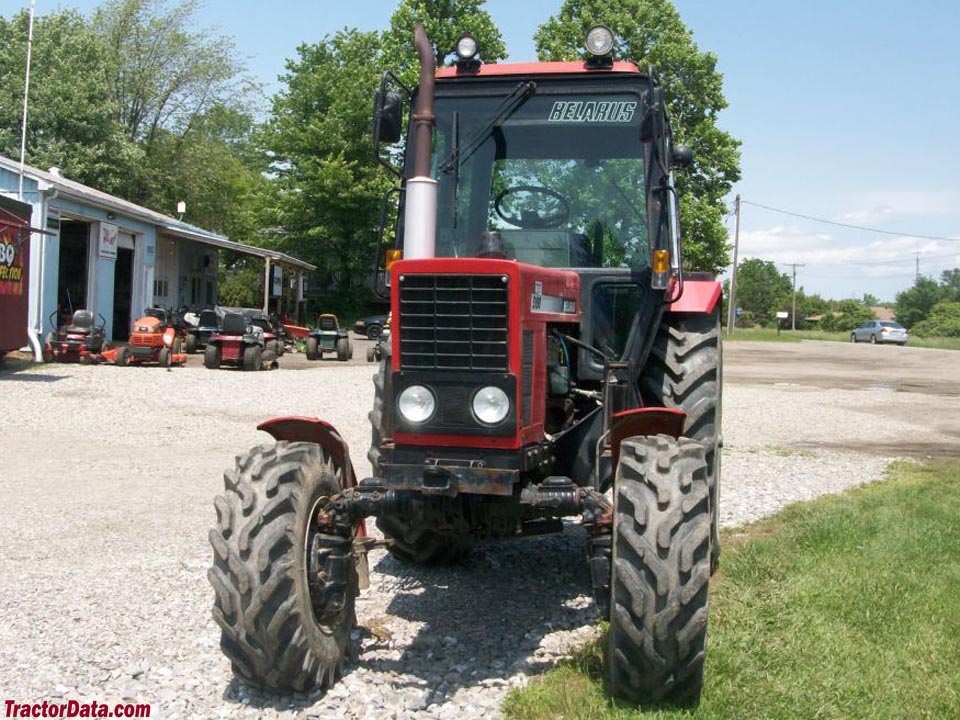

Belarus 5190
Production |
Manufacturer: | Belarus
|
Belarus 5190 Power |
PTO (claimed): | 93 hp 69.4 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | hydraulic rear lock
|
Steering: | hydrostatic power
|
Brakes: | mechanical dry disc
|
Cab: | Cab standard.
|
Transmission: | 18-speed
|
Transmission details ... |
Capacity |
Fuel: | 28.6 gal 108.3 L
|
Hydraulic system: | 4.8 gal 18.2 L
|
Hydraulics |
Type: | live open center
|
Capacity: | 4.8 gal 18.2 L
|
Pressure: | 2800 psi 193.1 bar
|
Valves: | 2
|
Pump flow: | 9.9 gpm 37.5 lpm
|
Tractor hitch |
Rear Type: | II
|
Rear lift: | 4400 lbs 1995 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000 (1.375)
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 50
|
Batteries: | 2
|
Battery volts: | 12
|
