Massey Ferguson 1526


Massey Ferguson 1526 tractor photo
2011 - 2024
Model year
1500 Series
Compact Utility tractor
Production
ManufacturerMassey Ferguson
Compact Utility tractor
Original price was $15,968 in 2017
Massey Ferguson 1526 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank7.1 gal
26.9 L
Engine details ...
Massey Ferguson 1526 Power
Engine (gross)24.8 hp
18.5 kW
PTO (claimed)20.1 hp
15.0 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post foldable ROPS.
Hydraulics
Typeopen center
Rear valves1 OptOptional
SCV flow5.5 gpm
20.8 lpm
Total flow8.7 gpm
32.9 lpm
Steering flow3.2 gpm
12.1 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)1322 lbs
599 kg
Rear lift (at 24"/610mm)992 lbs
449 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear RPM540
Mid PTOindependent
Mid RPM2000
Dimensions & Tires
Wheelbase61.4 inches
155 cm
Weight1873 to 2077 pounds
Front tire7-12
Rear tire35x12.00-16.5
Full dimensions and tires ...
Massey Ferguson 1526 attachments
60" mid-mount mower deck
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References

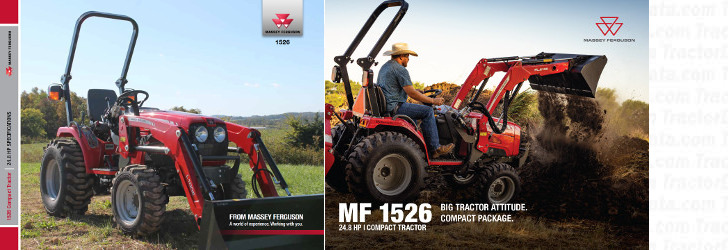

1526 references literature
1526 Compact Tractor published in 2016, by Massey Ferguson
MF1526 Compact Tractor published in 2023, by Massey Ferguson
