CaseIH Farmall 105U Tests


CaseIH Farmall 105U tractor photo
2008 - 2022
Model year
Farmall U Series
Utility tractor
Series:Farmall 105UFarmall 115U
OCED Tractor Test 2805

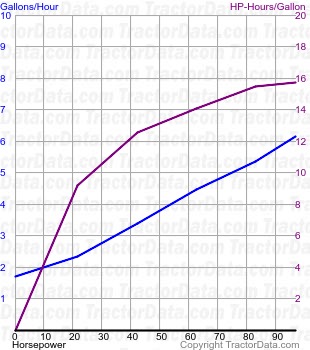

Farmall 105U fuel use from test 950
OCED Tractor Test 2805
Diesel 12-speed 4WD
June 2013 - August 2013,
Link: OCED Tractor Test 2805 file
PTO performance
Max power:99.3 hp
74.0 kW
Fuel use:5.8 gal/hour
22.0 l/hour
Power at rated engine speed:96.6 hp
72.0 kW
Fuel use:6.1 gal/hour
23.1 l/hour
Power at rated PTO speed:99.3 hp
74.0 kW
Fuel use:5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power:70.3 hp
52.4 kW
Fuel use:6.2 gal/hour
23.5 l/hour
Gear 2M used for power test.
Max pull:8250 lbs
3742 kg
Gear 2L used for pull test.
