CaseIH Farmall 115U Tests


CaseIH Farmall 115U tractor photo
2013 - 2016
Farmall U Series
Utility tractor
Series map:
Farmall 105U
Farmall 115U
105.0hp
115.0hp
OCED Tractor Test 2803

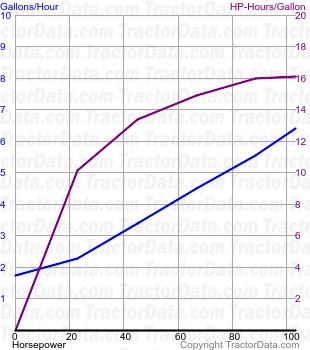

Farmall 115U fuel use from test 951
OCED Tractor Test 2803
Diesel 24-speed 4WD
March 2013 - July 2013,
Link: OCED Tractor Test 2803 file
PTO performance
Max power104.7 hp
78.1 kW
Fuel use6.1 gal/hour
23.1 l/hour
Power at rated engine speed103.0 hp
76.8 kW
Fuel use6.4 gal/hour
24.2 l/hour
Power at rated PTO speed104.7 hp
78.1 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power73.0 hp
54.4 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 2MH used for power test.
Max pull8230 lbs
3733 kg
Gear 2ML used for pull test.
