John Deere 790
|
|
| Production | |
| Distributor | John Deere |
| Manufacturer | Yanmar |
| Compact Utility tractor | |
| John Deere 790 Engine | |
| Yanmar 1.3L 3-cyl diesel | |
 Engine details ... |
| John Deere 790 Transmission | |
| 8-speed unsynchronized | |
 Transmission details ... |
| John Deere 790 Power | |
| Engine (gross) | 27 hp 20.1 kW |
| PTO (claimed) | 24 hp 17.9 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| 2WD Steering | manual |
| 4WD Steering | hydrostatic power |
| Independent dry shoe brakes | |
| Two-post ROPS. | |
| Photos | |
 | |
 John Deere 790 photos... | |
| Capacity | |
| Fuel | 6.3 gal 23.8 L |
| Hydraulic system | 4 gal 15.1 L |
| Front diff. | 2.32 qts 2.2 L |
| Hydraulics | |
| Type | open center |
| Capacity | 4 gal 15.1 L |
| Pressure | 2050 psi 141.3 bar |
| Pump flow | 5.4 gpm 20.4 lpm |
| Steering flow | 4.2 gpm 15.9 lpm |
| Steering press. | 2050 psi 141.3 bar |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at 24"/610mm) | 815 lbs 369 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| live (two-stage clutch) | |
| Rear PTO Type | 540 |
| Mid PTO Type | 2100 |
| Dimensions & Tires | |
| Wheelbase | 60.4 inches 153 cm |
| Weight | 1930 to 2105 pounds |
| Front tire | 6.00-12 |
| Rear tire | 12.4-16 |
 Full dimensions and tires ... | |
| John Deere 790 attachments | |
| 60" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

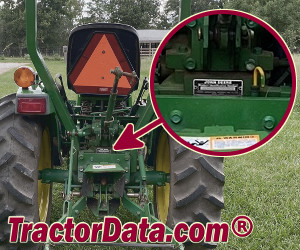

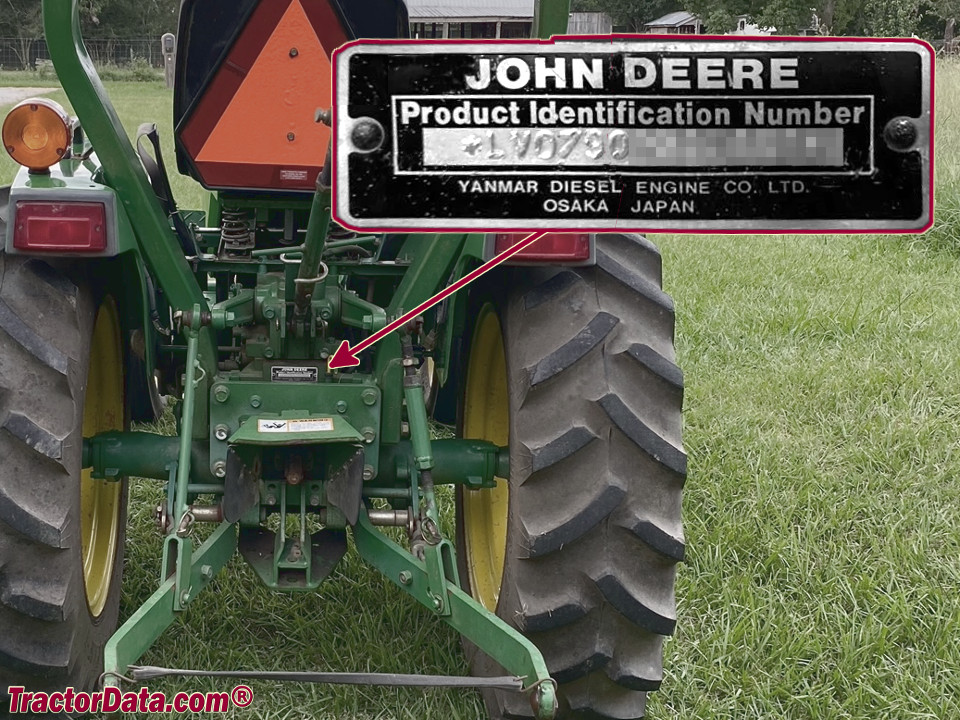

| 790 Serial Number Location | |
 | |
| Serial number plate on the rear of the tractor. |
| 790 Serial Numbers | |
| 1999 | LV0790G190001 |
| 2000 | LV0790G390001 |
| 2001 | LV0790G490001 |
| 2002 | LV0790G570001 |
| 2003 | LV0790G592446 |
| 2004 | LV0790G790001 |
| 2005 | LV0790G890001 |
| 2006 | LV0790G990001 |
| 2007 | LV0790S190001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 500 |
| Battery volts | 12 |
| Battery Group | 45 |
| References | |
 | |
| Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere | |
| 4000 TEN Series Product Information Handbook published in 2003, by John Deere |
