Tractors > J.I. Case > 600

J.I. Case 600 Engine



J.I. Case 600 tractor photo
1957
600 Series
Standard-tread tractor
Series map:
600
77.8hp*
*Estimated engine power for comparison only.
Engine Detail
J.I. Case
diesel
6-cylinder
liquid-cooled
Displacement377 ci
6.2 L
Bore/Stroke4.00x5.00 inches
102 x 127 mm
Air cleaneroil bath
Pre-heatingether injection
Compression15:1
Rated RPM1500
Idle RPM600-1635
Firing order1-5-3-6-2-4
Starterelectric
Starter volts12
Coolant capacity56 qts
53.0 L
Intake valve clearance0.012 inches (cold)
0.305 mm
Exhaust valve clearance0.012 inches (cold)
0.305 mm
Engine Oil

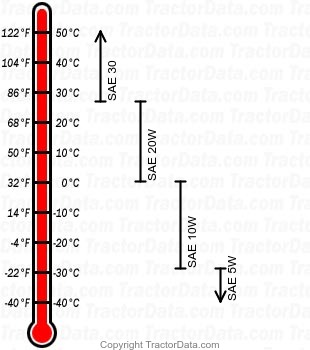

600 diesel engine oil chart
Oil capacity14 qts
13.2 L

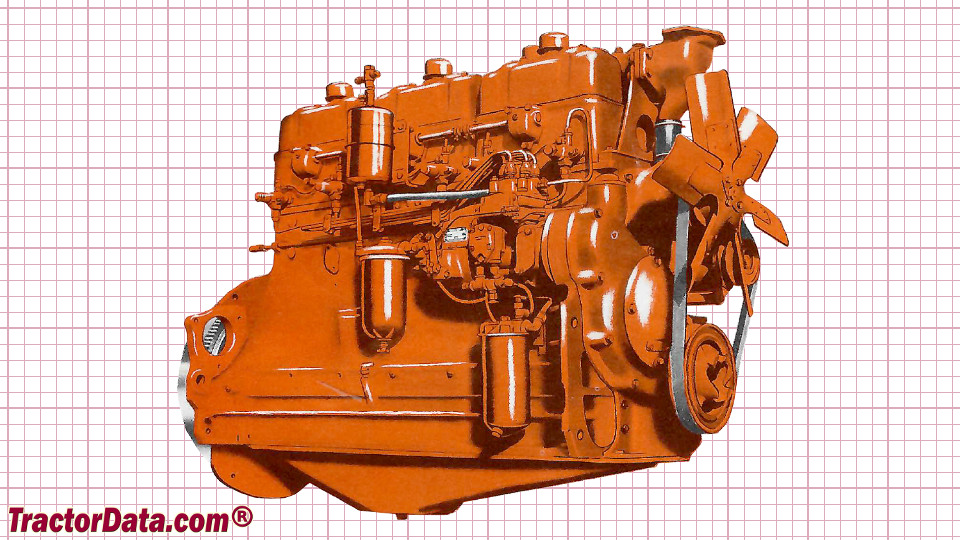

J.I. Case 600 Engine
J.I. Case 600 engine image
