Tractors > John Deere > 5115M

John Deere 5115M

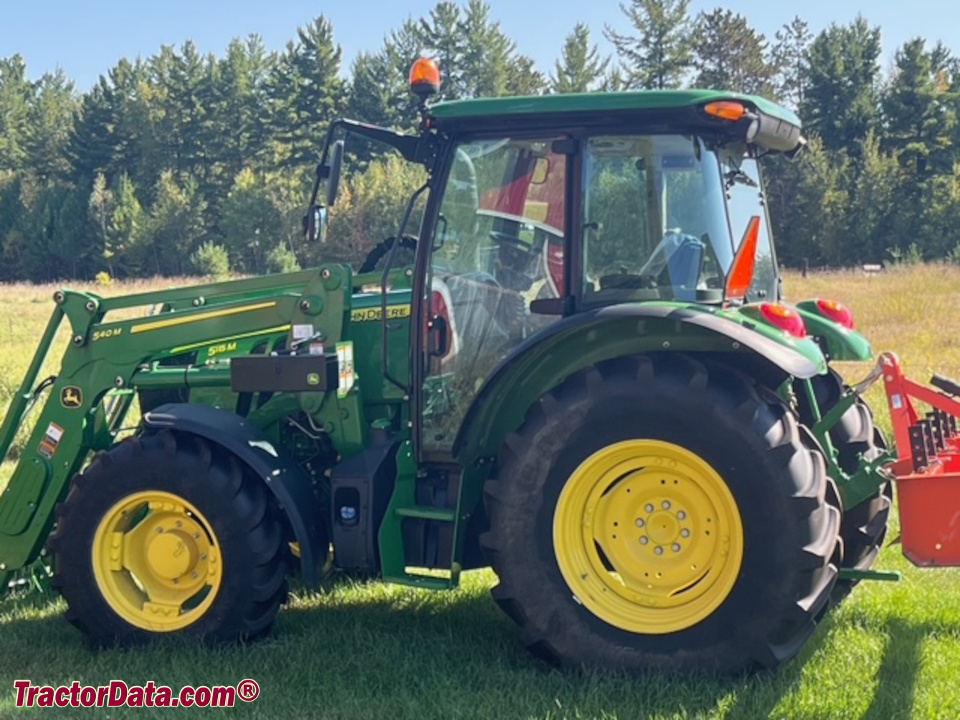

John Deere 5115M tractor photo
2012 - 2022
Model year
5M Series
Utility tractor
Series map:
5100M
5115M
100.0hp
115.0hp
Production
ManufacturerJohn Deere
Utility tractor
Original price was $63,989 in 2014
John Deere 5115M Engine
John Deere 4.5L 4-cyl diesel
ROPS Fuel tank40 gal
151.4 L
Cab Fuel tank46 gal
174.1 L
Engine details ...
John Deere 5115M Transmissions
16-speed
32-speed
Transmission details ...
John Deere 5115M Power
Engine (gross)115 hp
85.8 kW
PTO (claimed)100 hp
74.6 kW
Drawbar (tested)89.74 hp
66.9 kW
PTO (tested)103.42 hp
77.1 kW
Performance test details ...
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic rear diff lock
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS with flat operation platform. Optional isolated platform. Optional cab with air-conditioning. Optional deluxe cab with premium sound package and sunroof.
Photos
No photos of the John Deere 5115M are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2828 psi
195.0 bar
Rear valves2 ro 3
Mid valves2 or 3
Pump flow18.4 gpm
69.6 lpm
Total flow24.7 gpm
93.5 lpm
Steering flow6.3 gpm
23.8 lpm
Steering press.2030 psi
140.0 bar
Tractor hitch
Rear Type2/1
Controlposition control and lower-link draft sensing
Rear lift (at 24"/610mm)4,793 lbs
2174 kg
 5,935 lbs (optional)
2692 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E
Engine RPM540@2100
Dimensions & Tires
Wheelbase90.6 inches
230 cm
Weight7900 to 9000 pounds
Front tire12.4R24
Rear tire18.4R30
Full dimensions and tires ...
John Deere 5115M attachments
front-end loader
Attachment details ...
5115M Serial Number Location

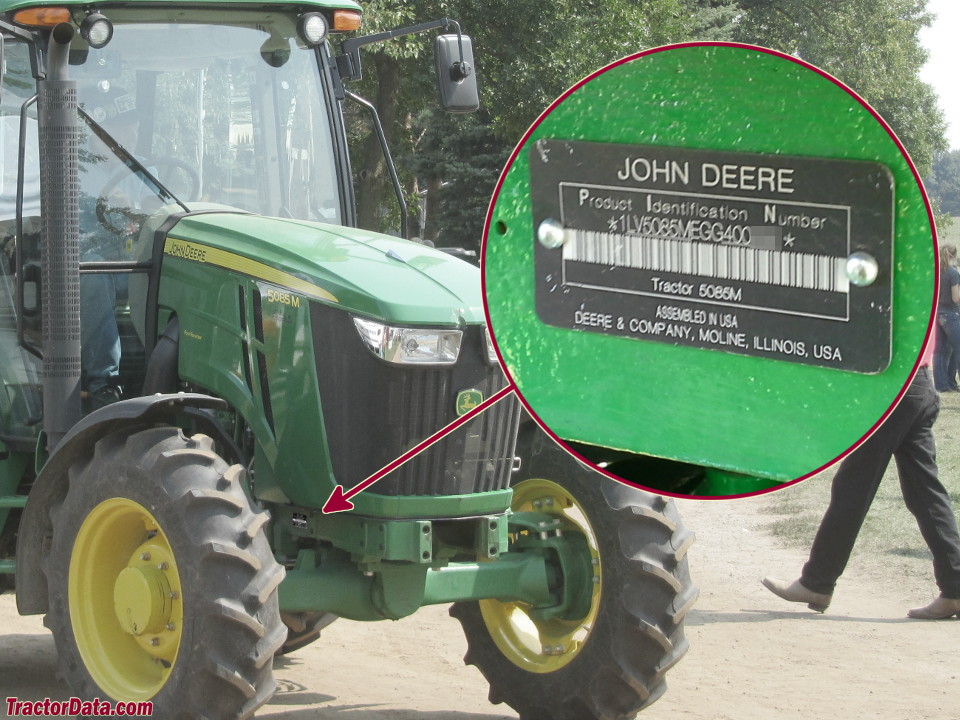

John Deere 5115M serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps70 (ROPS)
 90 (cab)
Battery volts12
References
5115M references literature
5M Series published in 2013, by John Deere
