Mahindra Max 28 XL

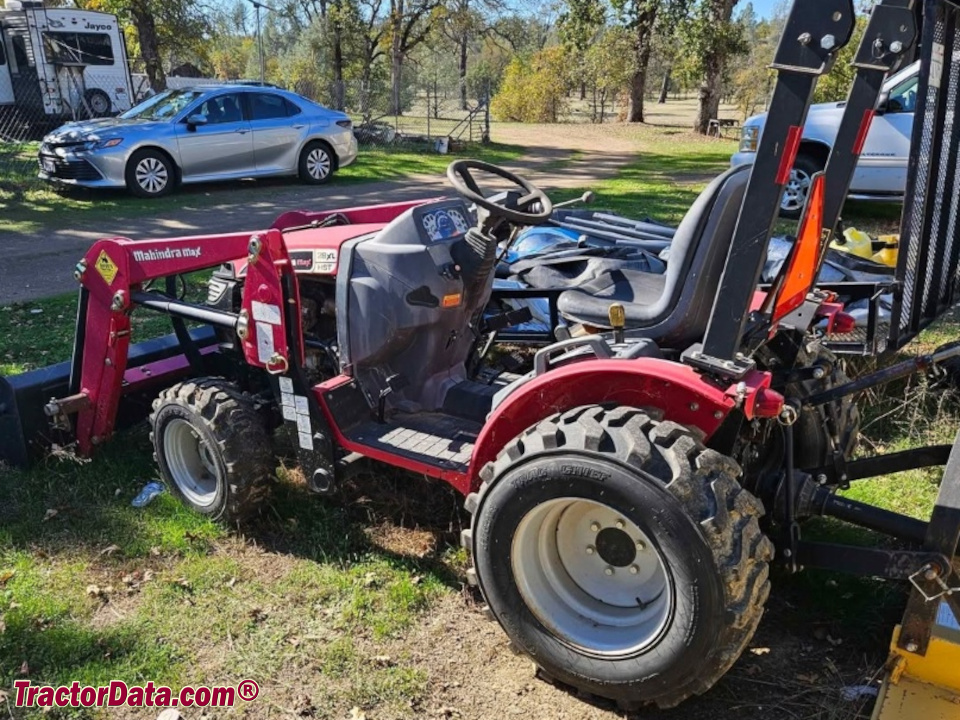

Mahindra Max 28 XL tractor photo
2012 - 2014
Max Series
Sub-Compact Utility tractor
Series:Max 25Max 28 XL
Type:Sub-Compact Utility tractor
Original price:$14,750 (2012 hydro )
Original price:$13,750 (2012 shuttle )
Mahindra Max 28 XL Power
Engine:28 hp
20.9 kW
Gear PTO (claimed):23.5 hp
17.5 kW
Hydro PTO (claimed):22 hp
16.4 kW
Mahindra Max 28 XL Engine
Mitsubishi 1.3L 3-cyl diesel
Fuel tank:6.1 gal
23.1 L
Engine details ...
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmissions:8-speed synchronized shuttle
Transmission details ...
No photos of the Mahindra Max 28 XL are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Type:open center
Valves:1 (optional)
Pump flow:4.6 gpm
17.4 lpm
Steering flow:2.7 gpm
10.2 lpm
Tractor hitch
Rear Type:1
Control:position control
Rear lift:2,205 lbs
1000 kg
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540
Engine RPM:540@2376
Mid PTO:optional
Mid RPM:2000
Engine RPM:2000@2556
Dimensions & Tires
Weight:1819 to 1863 pounds
Front tire:7x12
Rear tire:9.5x16
Full dimensions and tires ...
Mahindra Max 28 XL attachments
front-end loader
Attachment details ...
Charging system:alternator
Charging amps:50
Battery volts:12
Battery AH:35
Page information
Last update:April 20, 2016
