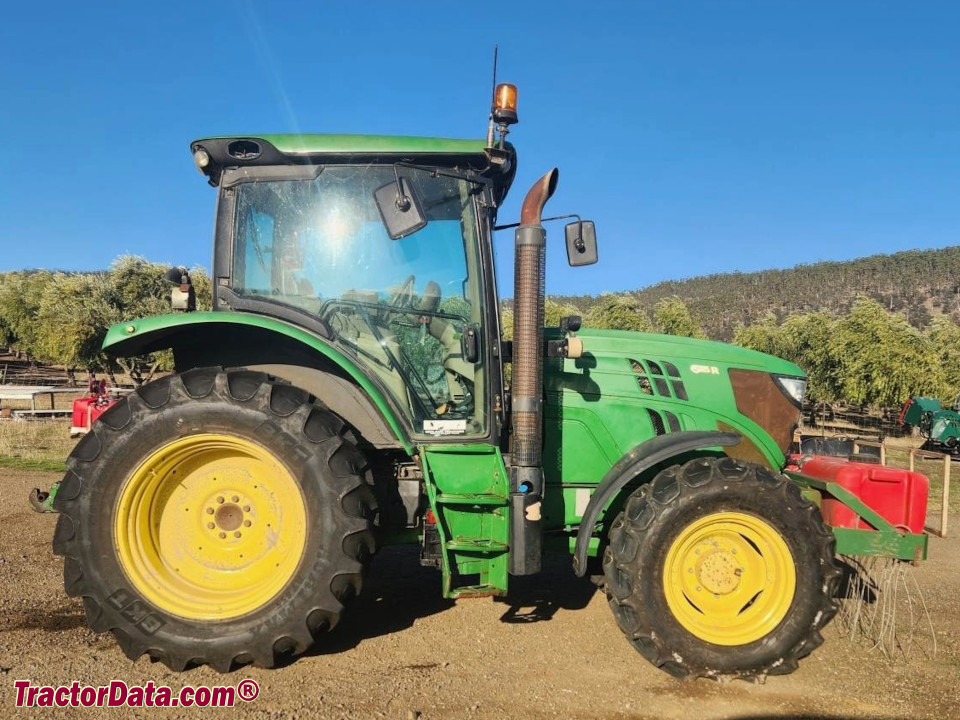

John Deere 6115R
| | 2012 - 2016 |
| 6R Series | | Utility tractor |
|
| Production |
| Manufacturer: | John Deere
|
| Type: | Utility tractor
|
| Factory: | Mannheim, Baden-Württemberg, Germany
|
| John Deere 6115R Power |
| Engine (gross): | 115 hp
85.8 kW
|
| Engine (max): | 127 hp
94.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | Electro-hydraulic rear with wet disc clutch. Self-locking front.
|
| Steering: | hydrostatic power
|
| Trailer brakes: | hydraulic or pneumatic optional
|
| Cab: | ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections.
|
| Transmissions: | 24-speed partial power shift
|
| | infinitely variable transmission
|
 Transmission details ... |
| Photos |
| No photos of the John Deere 6115R are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type: | pressure flow compensated (PFC)
|
| Rear valves: | 4
|
| Front valves: | 2 (optional)
|
| Pump flow: | 21.1 gpm
79.9 lpm
|
| | 32.1 gpm
121.5 lpm (optional)
|
| Tractor hitch |
| Rear Type: | 3N
|
| Control: | load and depth control with electronic lower link sensing
|
| Rear lift (at ends): | 8,379 lbs
3800 kg
|
| Rear lift (at 24"/610mm): | 7,387 lbs
3350 kg
|
| Front Hitch: | 3N
|
| Front lift (at ends): | 7,277 lbs
3300 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/540E/1000
|
| Engine RPM: | 540@1950
540E@1721
1000@1950
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@1995
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
