John Deere 6210R Transmission

John Deere 6210R tractor photo
2012 - 2014
6R Series
Row-Crop tractor
Transmissions overview
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
24-speed eight-speed power shift
Transmission:PowerQuad Plus
Type:partial power shift
Gears:16 forward and reverse
Oil capacity:94.05 qts
89.0 L
Oil type:
hydraulic wet disc

Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.
With 18.4R46 rear tires.

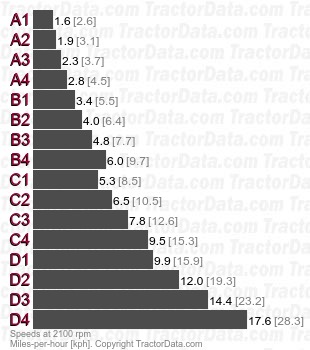

6210R PowerQuad Plus partial power shift speeds
Transmission:AutoQuad Plus Eco
Type:partial power shift
Gears:20 forward and reverse
Clutch:hydraulic wet disc
Oil capacity:94.05 qts
89.0 L
With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).

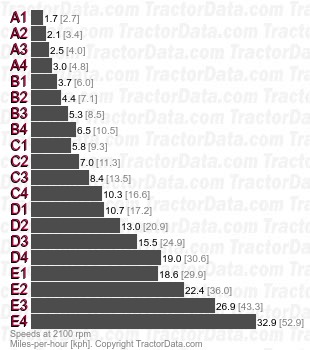

6210R AutoQuad Plus Eco partial power shift speeds
Transmission:AutoPowr IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
Oil capacity:111 qts
105.1 L
Type:eight-speed power shift
Gears:24 forward and reverse
