Minneapolis-Moline G550
|
|
Note: the Minneapolis-Moline model G550 is the same as the Oliver 1555. The following data is from the 1555 listing. |
| Production | |
| Manufacturer | Minneapolis-Moline |
| Row-Crop tractor | |
| Original price was $6,500 in 1975 | |
| Minneapolis-Moline G550 Engines | |
| Waukesha-Oliver 3.8L 6-cyl diesel | |
| Waukesha-Oliver 3.8L 6-cyl gasoline | |
 Engine details ... |
| Minneapolis-Moline G550 Transmissions | |
| 12-speed partial power shift | |
| 6-speed unsynchronized gear | |
 Transmission details ... |
| Minneapolis-Moline G550 Power | |
| PTO (claimed) | 53 hp 39.5 kW |
| Drawbar (tested) | 45.7 hp 34.1 kW |
| PTO (tested) | 53.50 hp 39.9 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Disc brakes | |
| Open operator station. Cab optional with available heater. |
| Capacity | |
| Fuel | 27.5 gal 104.1 L |
| Hydraulic system | 14 gal 53.0 L |
| Hydraulics | |
| Type | open center |
| Capacity | 14 gal 53.0 L |
| Valves | 2 to 4 |
| Tractor hitch | |
| Rear Type | II/I |
| Control | lower-link draft control |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| 1000 | |
| 540/1000 | |
| Dimensions & Tires | |
| Wheelbase | 99 inches 251 cm |
| Weight | 6841 lbs 3103 kg |
| Front tire | 7.50-16 |
| Rear tire | 15.5-38 |
 Full dimensions and tires ... | |
| G550 Serial Number Location | |
 | |

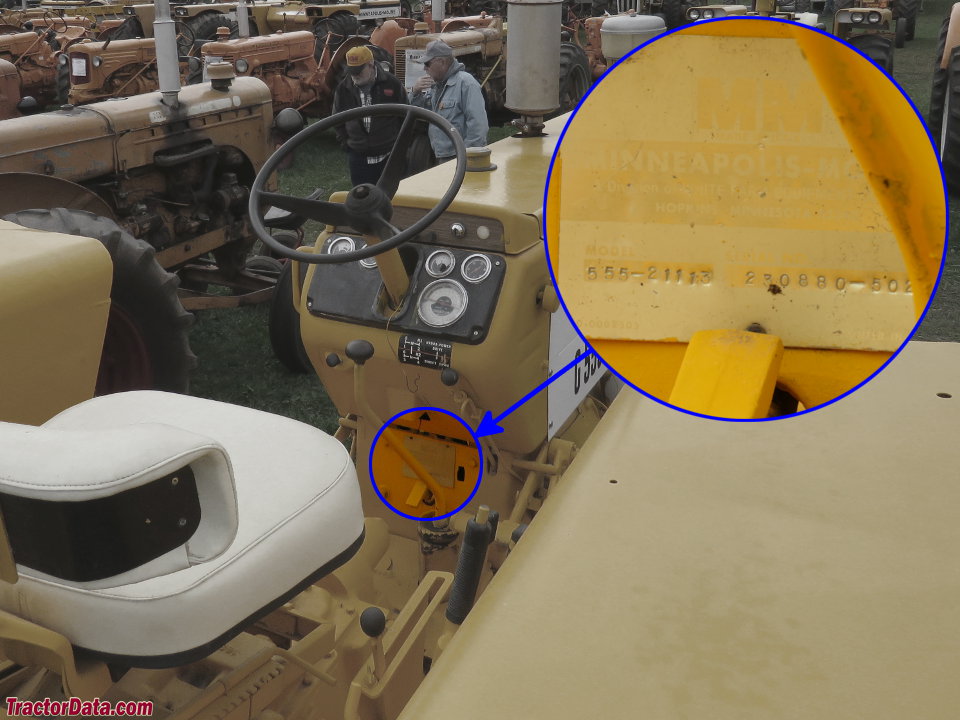

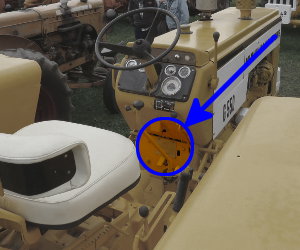

| Serial number plate below instrument panel. |
| G550 Serial Numbers | |
| 1969 | 218-128 |
| 1970 | 221-295 |
| 1971 | 225-914 |
| 1972 | 232-089 |
| 1973 | 236-883 |
| 1974 | 244-937 |
| 1975 | 256-165 |
| Final | 262-877 |
FAQ: How to read a serial number table. | |
