Cockshutt 80
|
|
| Production | |
| Distributor | Cockshutt |
| Manufacturer | Oliver |
| Row-Crop tractor | |
| Built in Charles City, Iowa, USA | |
| Variants | |
| Row-crop 80 | tricycle-front |
| Standard 80 | fixed-tread |
| Cockshutt 80 Engines | |
| Waukesha-Oliver 5.5L 4-cyl kerosene | |
| Waukesha-Oliver 4.9L 4-cyl gasoline | |
| Fuel tank | 13 gal (early) 49.2 L |
| 17 gal (after 1938) 64.3 L | |
 Engine details ... | |
| Cockshutt 80 Transmissions | |
| 3-speed gear | |
| 4-speed gear | |
 Transmission details ... |
| Cockshutt 80 Power | |
| Plows | 3 |
| Drawbar (tested) | 29.92 hp 22.3 kW |
| Belt (tested) | 38.78 hp 28.9 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Open operator station. | |
| Photos | |
 | |
 Cockshutt 80 photos... | |
| Dimensions & Tires | |
| Weight | 4,800 lbs 2177 kg |
| Rear tire | 11.25-40 |
 Full dimensions and tires ... | |
| 80 Serial Number Location | |
 | |

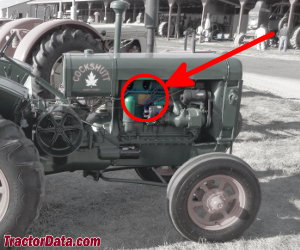

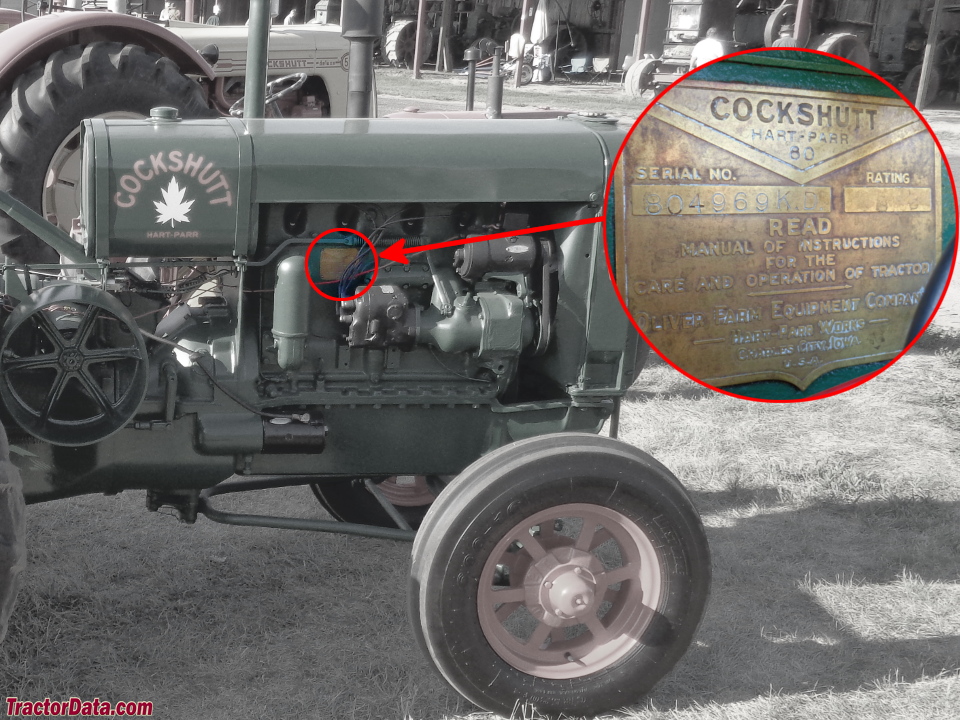

| Serial number plate on the right side of the Cockshutt 80, affixed to the tractor's engine above the magneto. |
| 80 Serial Numbers | |
| 1937 | 109152 |
| 1938 | 109167 |
| 1939 | 109783 |
| 1940 | 110221 |
| 1941 | 110615 |
| 1942 | 110945 |
| 1943 | 111219 |
| 1944 | 111391 |
| 1945 | 111929 |
| 1946 | 112879 |
| 1947 | 114144 |
| 1948 | 114944 |
FAQ: How to read a serial number table. | |
