Massey Ferguson 35X

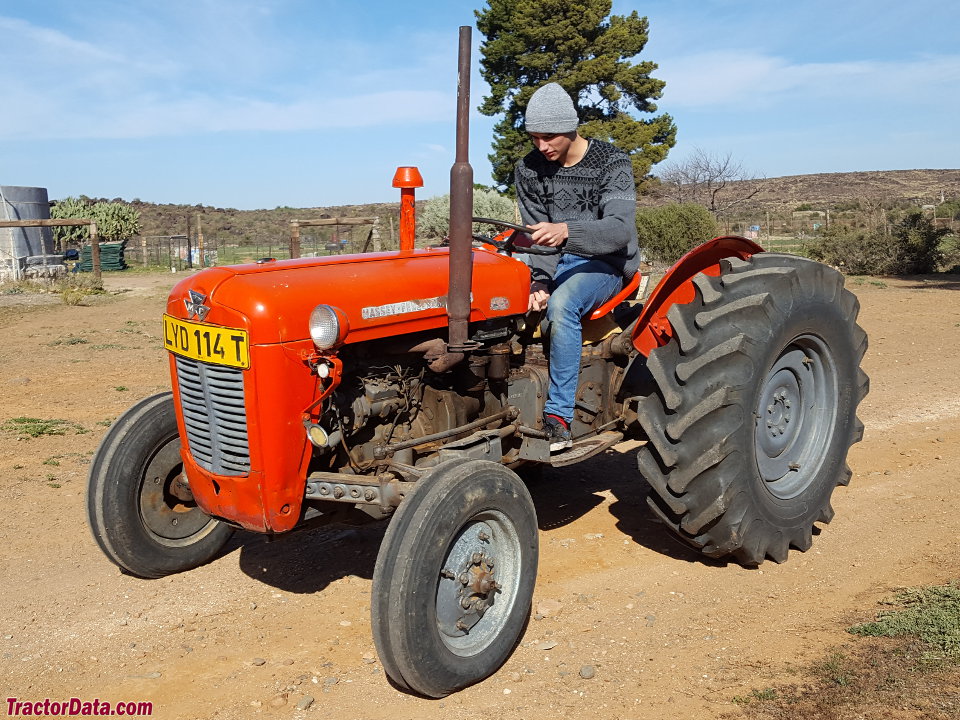

Massey Ferguson 35X tractor photo
1962 - 1964
Utility tractor
ManufacturerMassey Ferguson
Utility tractor
Built in Coventry, England
Massey Ferguson 35X Engine
Perkins 2.5L 3-cyl diesel
Fuel tank10.2 gal
38.6 L
Engine details ...
Massey Ferguson 35X Transmissions
6-speed gear
12-speed partial power shift
Transmission details ...
Massey Ferguson 35X Power
Engine44.5 hp
33.2 kW
Two-wheel drive
Differential lockmechanical rear OptOptional
Manual steering
Mechanical drum brakes
Open operator station.
Typeopen center
Pressure2350 psi
162.0 bar
Pump flow3.7 gpm
14.0 lpm
Tractor hitch
Rear TypeI
Rear lift2600 lbs
1179 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540
Engine RPM540@1500
Dimensions & Tires
Weight3265 lbs
1481 kg
Front tire6.00-16
Rear tire12.4/11-28
Full dimensions and tires ...
35X Serial Numbers
Location:Serial number plate on the instrument panel.

FAQ: How to read a serial number table.
