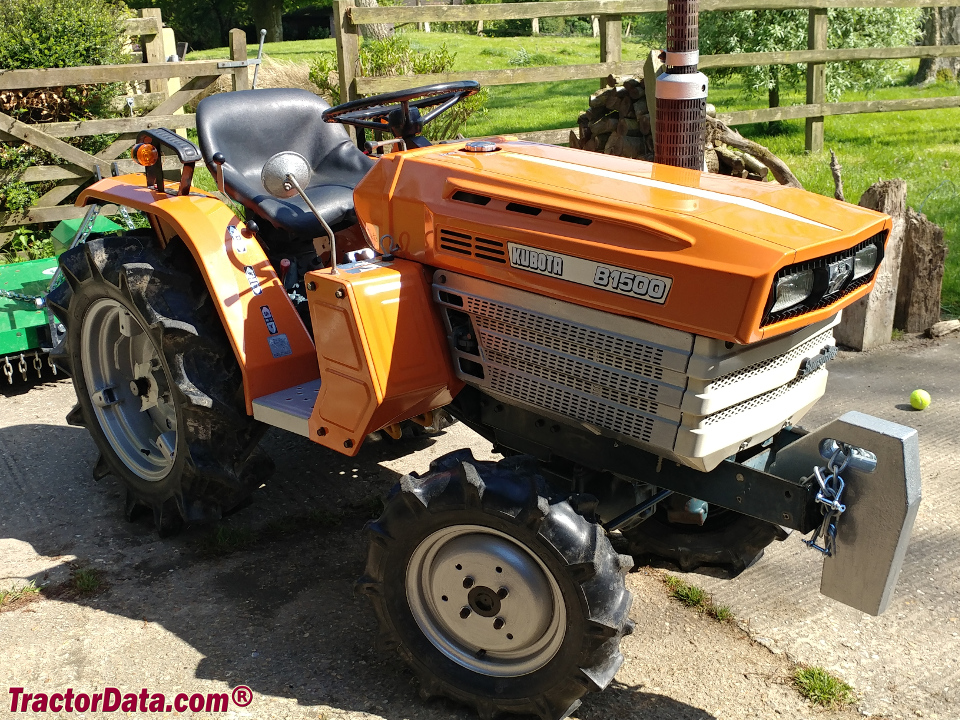

Kubota B1500
| | 1980 - 1982 |
| B00 Series | | Sub-Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Sub-Compact Utility tractor
|
| Factory: | Japan
|
| Kubota B1500 Power |
| Engine: | 19 hp
14.2 kW
|
| PTO (claimed): | 15 hp
11.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | manual
|
| Cab: | Open operator station. Two-post ROPS optional.
|
| Transmission: | 6-speed unsynchronized gear
|
 Transmission details ... |
| Photos |
| No photos of the Kubota B1500 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Tractor hitch |
| Rear Type: | I
|
| Power Take-off (PTO) |
| Rear RPM: | 540/860/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | January 12, 2018
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
