Simplicity 9523 Engine


Simplicity 9523 tractor photo
1978 - 1983
9500 Series
Compact Utility tractor
Hinomoto built
Series map:
9518
9523
9528
18.0hp
23.0hp
28.0hp
Engine Detail
Toyosha S126
diesel
2-cylinder
liquid-cooled
Displacement77.1 ci
1.3 L
Bore/Stroke3.62x3.74 inches
92 x 95 mm
Power23 hp
17.2 kW
Fuel systemKiki NP-PE injection pump
Air cleanerdry element
Compression23:1
Rated RPM2500
Idle RPM750-2750
Firing order1-2
Starterelectric
Starter volts12
Coolant capacity5.3 qts
5.0 L
Engine Oil

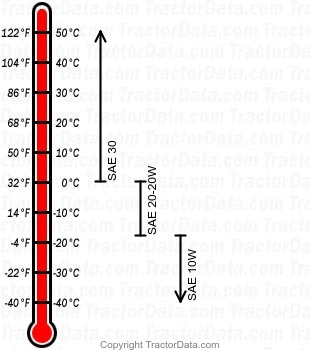

9523 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
