Tractors > CaseIH > 795

CaseIH 795

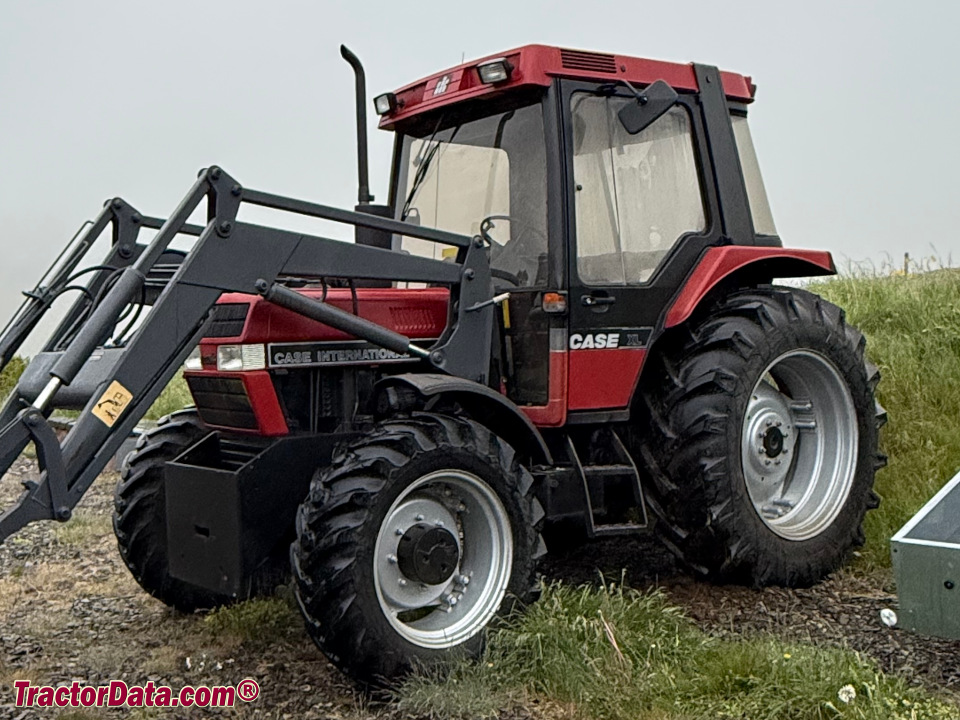

CaseIH 795 tractor photo
1991 - 1994   95 Utility Series
Utility tractor
Previous model:CaseIH 785
Series next:CaseIH 895
Series back:CaseIH 695



Factory:Doncaster, England

CaseIH 795 Engine:

   CaseIH 4.0L 4-cyl diesel
full engine details ...


Fuel:29.6 gal [112.0 L]

Power Take-off (PTO):

Rear RPM:540/1000

Dimensions & Tires:

2WD Wheelbase:88.2 inches [224 cm]
4WD Wheelbase:85.4 inches [216 cm]
Weight:6376 to 7480 pounds
Front tire:10.00x16
Rear tire:16.9x34 (2WD)
full dimensions and tires ...

795 Serial Numbers:

- Serial numbers unknown -

CaseIH 795 Power:

Engine:77 hp [57.4 kW]
PTO (claimed):69 hp [51.5 kW]


Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS. Cab available in the 795 XL version.
