John Deere 6430 Premium
| Production |
| Manufacturer | John Deere
|
| Built in Mannheim, Baden-Württemberg, Germany |
| Original price | $80,911 (2010)
|
| Variants |
| 6430 | basic tractor
|
| John Deere 6430 Premium Power |
| Engine (gross) | 125 hp
93.2 kW
|
| PTO (claimed) | 103 hp (2-valve)
76.8 kW
|
| | 114 hp (4-valve)
85.0 kW
|
| Drawbar (tested) | 92.10 hp
68.7 kW
|
| PTO (tested) | 117.32 hp
87.5 kW
|
 Performance test details ... |
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| ComfortGard Cab standard. |
| Capacity |
| Fuel | 48 gal
181.7 L
|
| Hydraulic system | 13.2 gal
50.0 L
|
| | 15.9 gal (IVT)
60.2 L
|
| Hydraulics |
| Type | closed-center pressure and flow compensated (PFC)
|
| Capacity | 13.2 gal
50.0 L
|
| | 15.9 gal (IVT)
60.2 L
|
| Pressure | 2900 psi
200.0 bar
|
| Rear valves | 2 to 4
|
| Pump flow | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type | II
|
| | IIIN/II (optional)
|
| Rear lift (at 24"/610mm) | 5,100 lbs
2313 kg
|
| | 7,231 lbs (optional)
3279 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| | 540/540E/1000 (optional)
|
| Front PTO | optional
|
| Front PTO Type | 1000
|

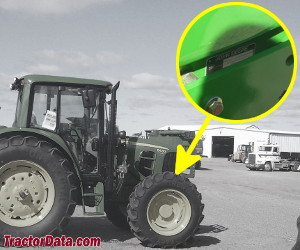

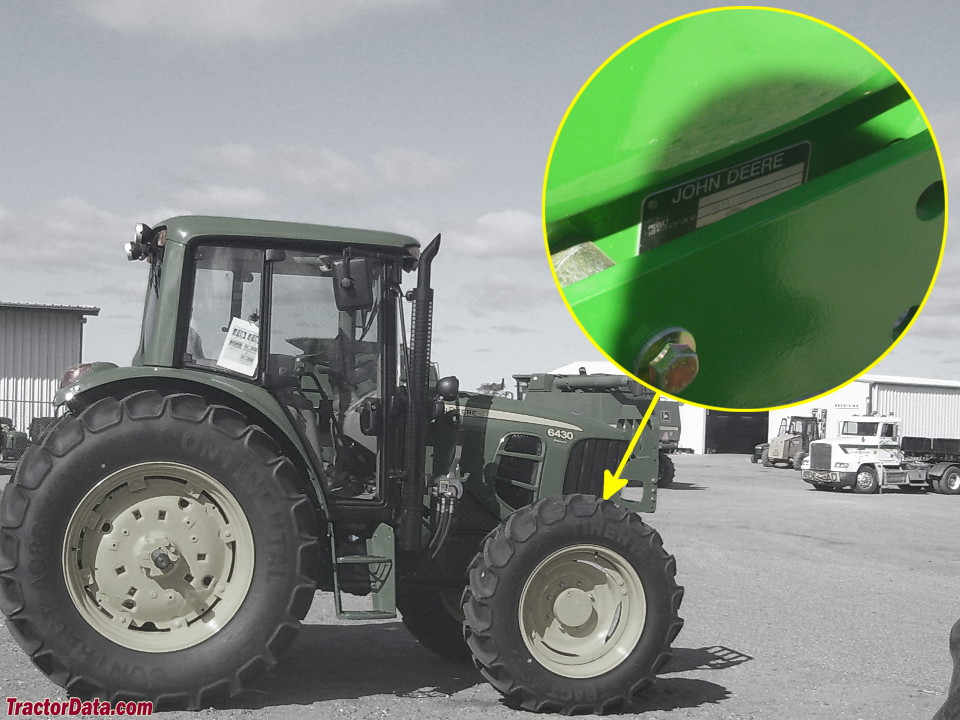

| 6430 Premium Serial Number Location |
 |
| Serial number plate on the front-right of the John Deere 6430 Premium tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 115
|
| Charging volts | 14
|
| Battery volts | 12
|
