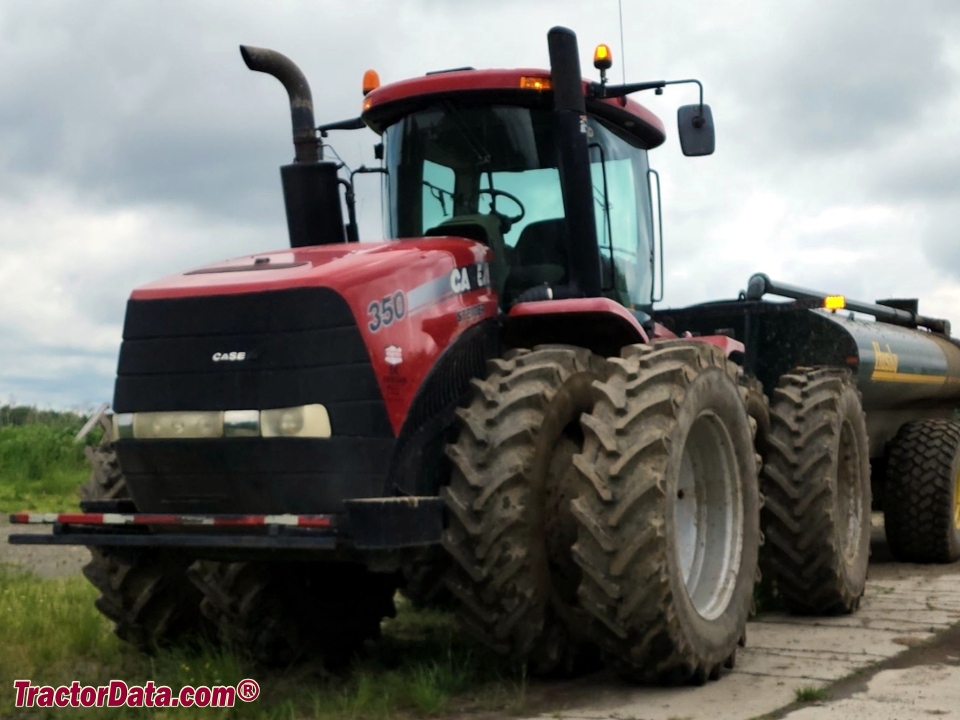

CaseIH Steiger 350
| | 2011 - 2013 |
| Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| CaseIH Steiger 350 Power |
| Engine: | 350 hp
261.0 kW
|
| PTO (claimed): | 290 hp
216.3 kW
|
| PTO (tested): | 341.13 hp
254.4 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Cab: | Surveyor cab standard.
|
| Transmission: | 16-speed full power shift
|
 Transmission details ... |
| Photos |
| No photos of the CaseIH Steiger 350 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type: | pressure flow compensating (PFC)
|
| Rear valves: | 4 to 8
|
| Pump flow: | 35 gpm
132.5 lpm
|
| Total flow: | 40 gpm
151.4 lpm
|
| | 55 gpm
208.2 lpm (High Flow)
|
| | 108 gpm
408.8 lpm (Twin Flow)
|
| Tractor hitch |
| Rear Type: | 4N
|
| Rear lift: | 20,000 lbs
9072 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| Steiger 350 Serial Numbers |
| Location: | Serial number plate on the front left tractor fender, near the steps.
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
| Page information |
| Last update: | February 10, 2017
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
