CaseIH Farmall DX24E

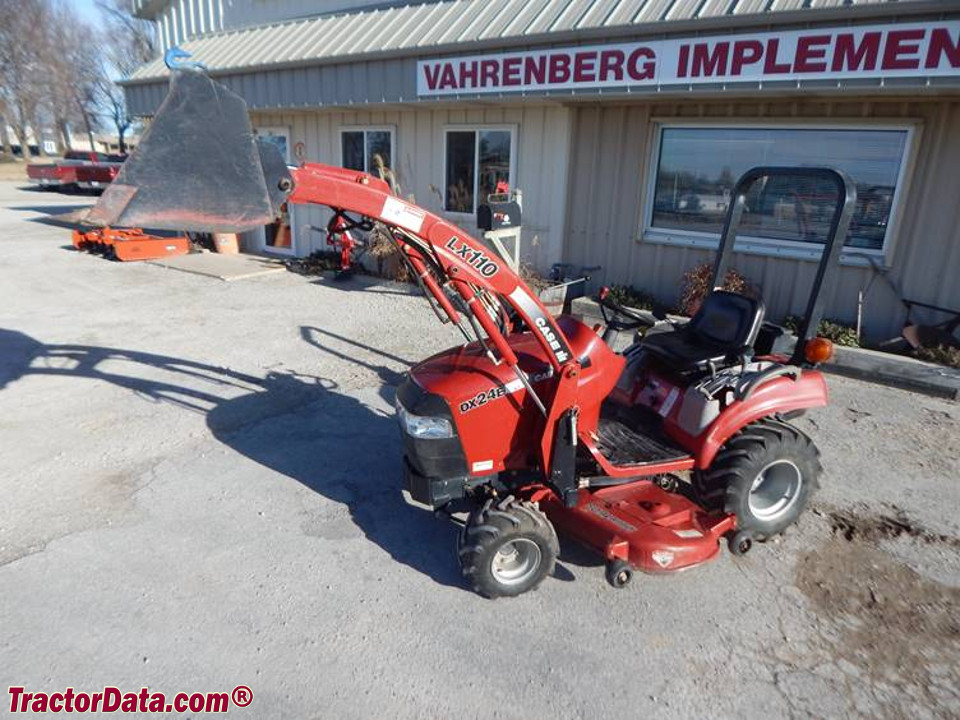

CaseIH Farmall DX24E tractor photo
2004
DXE Series
Compact Utility tractor
Series map:
Farmall DX22E
Farmall DX24E
Farmall DX25E
22.0hp
24.0hp
25.0hp
Production
ManufacturerCaseIH (a part of CNH)
Compact Utility tractor
Variants
TZ24DAsimilar New Holland model
SX24similar Shibaura model
CaseIH Farmall DX24E Engine
Shibaura 1.0L 3-cyl diesel
Fuel tank7.9 gal
29.9 L
Engine details ...
CaseIH Farmall DX24E Power
Engine (gross)24 hp
17.9 kW
PTO (claimed)18 hp
13.4 kW
Mechanical
Four-wheel drive
Power steering
Two-post ROPS. Canopy and soft cab optional.
Hydraulics
Typeopen center
Pump flow3.75 gpm
14.2 lpm
Total flow5.5 gpm
20.8 lpm
Steering flow1.85 gpm
7.0 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)700 lbs
317 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Mid PTOindependent
Mid PTO Type2200
Dimensions & Tires
Wheelbase55 inches
139 cm
Weight1323 lbs
600 kg
Full dimensions and tires ...
CaseIH Farmall DX24E attachments
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
Farmall DX24E references literature
DX Series Farmall Tractors published in 2004, by CaseIH
DX Series Farmall Tractors published in 2003, by CaseIH
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH
