New Holland TV6070 Tests


New Holland TV6070 tractor photo
2008 - 2014
Series map:
TV6070
155.0hp
OCED Tractor Test 1935

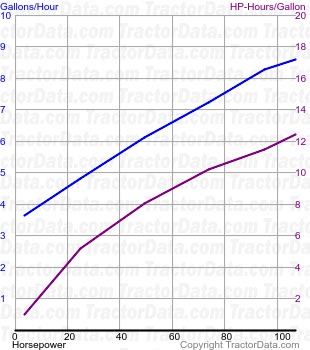

TV6070 fuel use from test 609
OCED Tractor Test 1935
Diesel hydrostatic 4WD
September 4 - 10, 2008
Link: OCED Tractor Test 1935 file
PTO performance
Max power115.85 hp
86.4 kW
Fuel use8.0 gal/hour
30.3 l/hour
Power at rated engine speed106.73 hp
79.6 kW
Fuel use8.6 gal/hour
32.6 l/hour
Power at rated PTO speed112.77 hp
84.1 kW
Fuel use8.4 gal/hour
31.8 l/hour
Drawbar performance
Max power80.25 hp
59.8 kW
Fuel use8.6 gal/hour
32.6 l/hour
Max pull11,815 lbs
5359 kg
