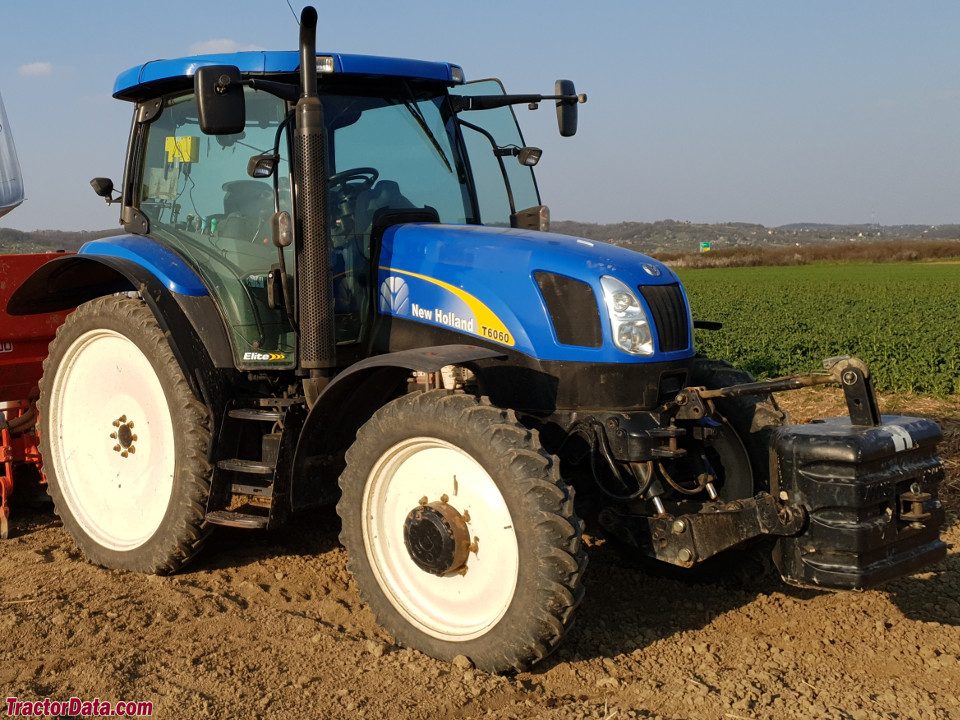

New Holland T6060 Elite
| | 2007 - 2012 |
| T6000 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | New Holland
|
| Type: | Row-Crop tractor
|
| Factory: | Basildon, England
|
| New Holland T6060 Elite Power |
| Engine (gross): | 130 hp
96.9 kW
|
| PTO (claimed): | 110 hp
82.0 kW
|
| Drawbar (tested): | 89.2 hp
66.5 kW
|
| PTO (tested): | 121.4 hp
90.5 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.
|
| Transmission: | 16-speed partial power shift
|
 Transmission details ... |
| Capacity |
| Fuel: | 46.5 gal
176.0 L
|
| | 40.2 gal
152.2 L (SuperSteer)
|
| Hydraulic system: | 16.3 gal
61.7 L
|
| Hydraulics |
| Type: | closed center load sensing
|
| Capacity: | 16.3 gal
61.7 L
|
| Valves: | 2 to 4
|
| Pump flow: | 26.5 gpm
100.3 lpm
|
| Total flow: | 37 gpm
140.0 lpm
|
| Steering flow: | 10.5 gpm
39.7 lpm
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Control: | electronic lower-link draft control
|
| Rear lift: | 12,185 lbs
5527 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Charging volts: | 12
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
