New Holland TS6030

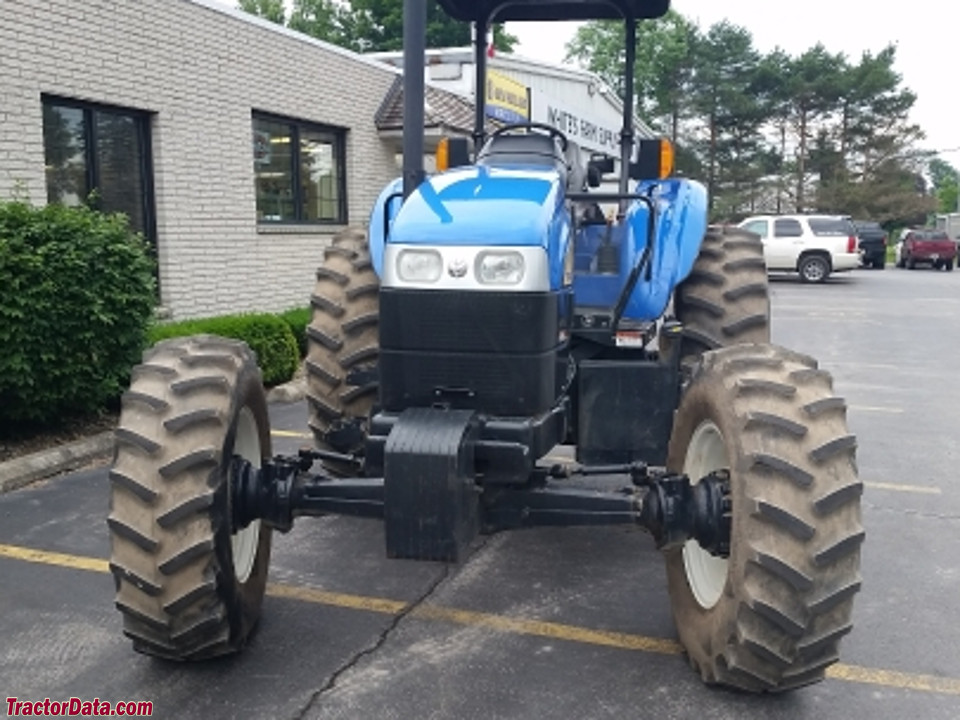

New Holland TS6030 tractor photo
2010 - 2012
TS6000 Series
Row-Crop tractor
Series:TS6020TS6030
TS6.120
Production
Manufacturer:New Holland
Type:Row-Crop tractor
Variants
TS6030:row-crop
TS6030HC:high-crop
New Holland TS6030 Power
Engine (gross):118 hp
88.0 kW
PTO (claimed):96 hp
71.6 kW
PTO (tested):99.55 hp
74.2 kW
power test details ...
New Holland TS6030 Engine
FPT 4.5L 4-cyl diesel
Fuel tank:39 gal
147.6 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Optional cab with air-conditioning.
Transmissions:8-speed constant mesh
 12-speed constant mesh with creeper
 16-speed
 24-speed
Transmission details ...
Hydraulics
Type:open center
Valves:2
Pump flow:13 gpm
49.2 lpm
 22 gpm
83.3 lpm (optional)
Steering flow:7 gpm
26.5 lpm
Tractor hitch
Rear Type:2
Control:mechanical top-link draft sensing
Rear lift (at 24"/610mm):3,600 lbs
1632 kg
 5,400 lbs
2449 kg (optional lift cylinder)
 7,200 lbs
3265 kg (optional dual lift cylinders)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery CCA:950
Battery volts:12
