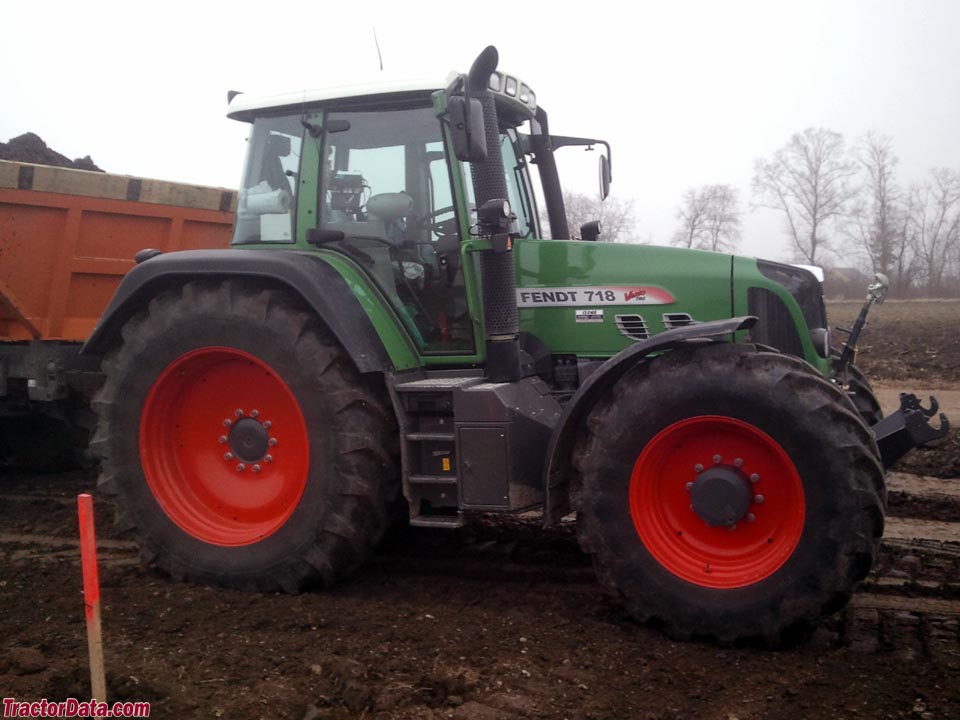

Fendt 718 Vario
| | 2006 - 2022 |
|
| 700 Vario Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Fendt
|
| Type: | Row-Crop tractor
|
| Factory: | Marktoberdoft, Germany
|
| Fendt 718 Vario Power |
| Engine (gross): | 181 hp
135.0 kW
|
| Engine (net): | 165 hp
123.0 kW
|
| Engine (max): | 186 hp
138.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Brakes: | wet discs
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission (IVT)
|
 Transmission details ... |
| Hydraulics |
| Type: | load sensing
|
| Pressure: | 2,900 psi
200.0 bar
|
| Total flow: | 29.1 gpm
110.1 lpm
|
| | 40.68 gpm
154.0 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 20,411 lbs
9258 kg
|
| Front lift: | 5,520 lbs
2503 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/540E/1000
|
| Front RPM: | 540 (optional)
|
| | 1000 (optional)
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery volts: | 12
|
| Battery AH: | 170
|
