Mahindra 3535

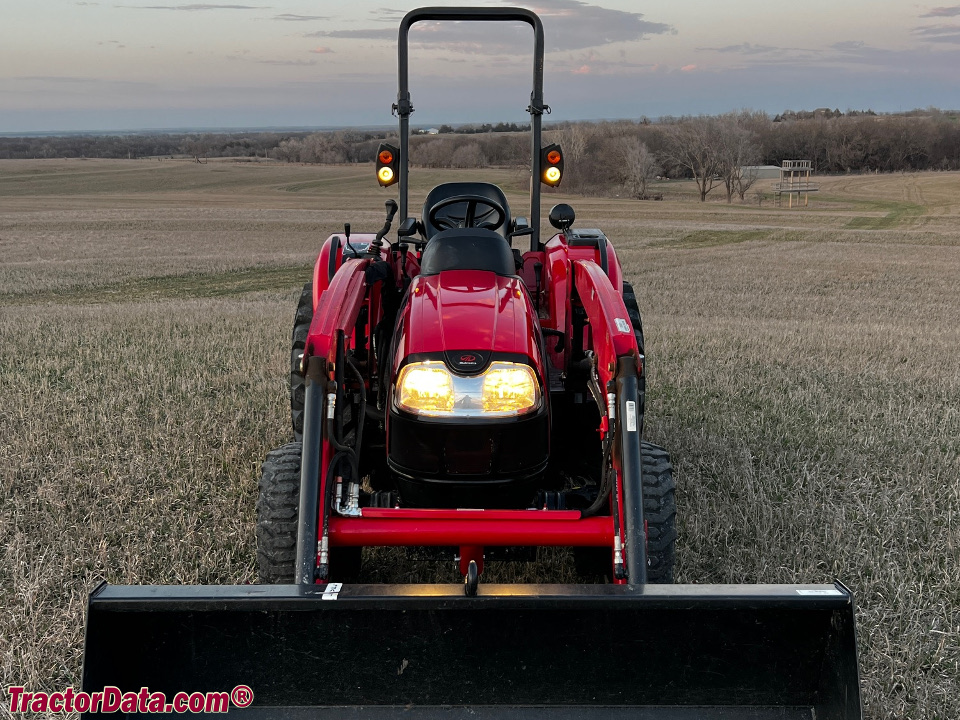

Mahindra 3535 tractor photo
2009 - ????
35 Series
Compact Utility tractor
Series map:
3535
4035
35.0hp
40.0hp
Production
ManufacturerMahindra
Compact Utility tractor
Built in Maharashtra, India
Original price was $19,875 in 2013
Mahindra 3535 Engine
Mahindra 1.9L 3-cyl diesel
Engine details ...
Mahindra 3535 Transmission
12-speed synchro shuttle with full synchromesh
Transmission details ...
Mahindra 3535 Power
Engine35 hp
26.1 kW
PTO (claimed)29 hp
21.6 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Two-post foldable ROPS.
Photos
No photos of the Mahindra 3535 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Rear valves0 to 2
Total flow11 gpm
41.6 lpm
Steering flow5 gpm
18.9 lpm
Tractor hitch
Rear TypeI
Rear lift2,835 lbs
1285 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Electrical
Groundnegative
Charging systemalternator
Charging amps45
Battery volts12
Battery AH96
References
3535 references literature
35 Series published in 2010, by Mahindra
3535 4WD Shuttle published in 2012, by Mahindra
