New Holland 8870



New Holland 8870 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
Series map:
8770
8870
8970
190.0hp
210.0hp
240.0hp

Note: the New Holland model 8870 is the same as the Ford 8870. The following data is from the 8870 listing.
Production
ManufacturerNew Holland
Row-Crop tractor
Original price was $103,000 in 2000
New Holland 8870 Engine
Ford 7.5L 6-cyl diesel
Engine details ...
New Holland 8870 Transmissions
16-speed full power shift
32-speed creeper
Transmission details ...
New Holland 8870 Power
Engine210 hp
156.6 kW
PTO (claimed)180 hp
134.2 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard
Photos
No photos of the New Holland 8870 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel110 gal
416.4 L
Hydraulic system36.9 gal
139.7 L
Front hubs1.7 qts (each)
1.6 L
Front diff.13 qts
12.3 L
Hydraulics
Typeclosed center load sensing
Capacity36.9 gal
139.7 L
Pressure2750 psi
189.6 bar
Valves3
Pump flow24 gpm
90.8 lpm
Total flow31 gpm
117.3 lpm
 55 gpm (MegaFlow optional)
208.2 lpm
Tractor hitch
Rear TypeIII
Rear lift12500 lbs
5670 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM1000
Dimensions & Tires
Wheelbase118.3 inches
300 cm
Weight16700 to 19000 pounds
Front tire14L-16.1
Rear tire18.4R42
Full dimensions and tires ...
New Holland 8870 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps130
Batteries2
Battery CCA950
Battery volts12
References

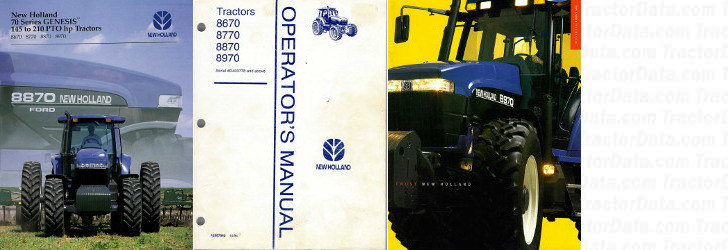

8870 references literature
70 Series Genesis Tractors published in 1995, by New Holland
Operator's Manual Tractors 8670, 8770, 8870, and 8970 (42867043) published in 1994
