| | 1981 - 1989 |
| 10 Utility Series | | Utility tractor |
|
| Transmissions overview |
| 8-speed |
| 8-speed synchromesh |
| Transmission |
| Transmission: | Dual Range
|
| Gears: | 8 forward and 2 reverse
|
| Clutch: | 330mm dry disc
|
| Oil capacity: | 12.7 qts
12.0 L
|

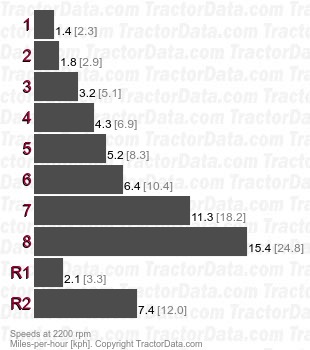

| Speeds |
| With 14.9x28 rear tires. |
|
| Transmission |
| Type: | synchromesh
|
| Gears: | 8 forward and 4 reverse
|
| Oil capacity: | 9.9 qts
9.4 L
|
| Speeds |
| With 14.9x28 rear tires. |
|
