Landini 5-110H
|
|
| Production | |
| Manufacturer | Landini |
| Utility tractor | |
| Landini 5-110H Engine | |
| Perkins 4.4L 4-cyl diesel | |
| Fuel tank | 27 gal 102.2 L |
 Engine details ... | |
| Landini 5-110H Transmissions | |
| 12-speed partial power shift with shuttle | |
| 36-speed partial power shift with hydraulic shuttle | |
| 24-speed partial power shift with shuttle | |
| 48-speed partial power shift with hydraulic shuttle | |
 Transmission details ... |
| Landini 5-110H Power | |
| Engine | 102 hp 76.1 kW |
| PTO (claimed) | 86.5 hp 64.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Wet disc brakes | |
| Powerfarm cab standard. Air-conditioning and pneumatic seat optional. |

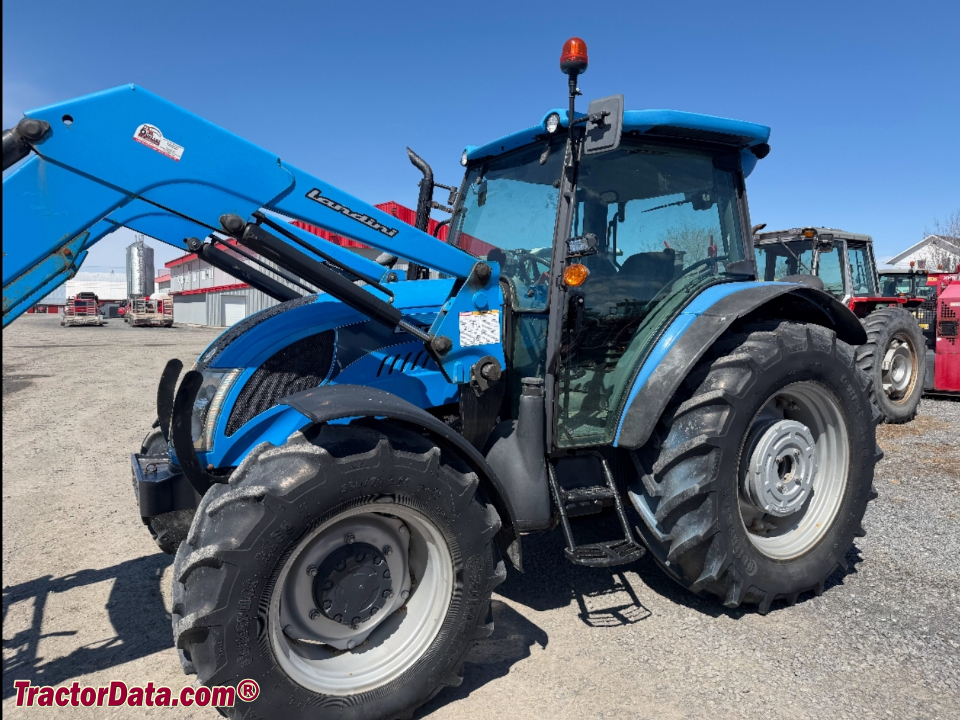

| Photos | |
 | |
 Landini 5-110H photos... | |
| Hydraulics | |
| Valves | 2 to 4 |
| Pump flow | 13.8 gpm 52.2 lpm |
| Total flow | 21.6 gpm 81.8 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift | 9,570 lbs 4340 kg |
| Front Hitch | II (optional) |
| Front lift | 3,960 lbs 1796 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/750 |
| 540/1000 (optional) | |
| 540/750/1000 (optional) | |
| ground (optional) | |
| Dimensions & Tires | |
| Wheelbase | 92 inches 233 cm |
| Weight | 8,030 lbs 3642 kg |
| Front tire | 380/70R24 |
| Rear tire | 480/70R34 |
 Full dimensions and tires ... | |
| References | |
 | |
| 5H Series published in 2012, by Landini |
