Branson 2400
| | 2007 - ???? |
| Compact Utility tractor |
|
| Production |
| Manufacturer: | Branson (a part of Kukje)
|
| Type: | Compact Utility tractor
|
| Factory: | Yangsu-ri, South Korea
|
| Variants |
| 2400h: | hydrostatic transmission
|
| Branson 2400 Power |
| Engine (gross): | 24 hp
17.9 kW
|
| PTO (claimed): | 22 hp
16.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 6-speed gear
|
| | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 4.8 gpm
18.2 lpm
|
| Total flow: | 8.2 gpm
31.0 lpm
|
| Steering flow: | 3.4 gpm
12.9 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Power Take-off (PTO) |
| Rear RPM: | 540/960
|
| Mid RPM: | 2500
|
| 2400 Serial Numbers |

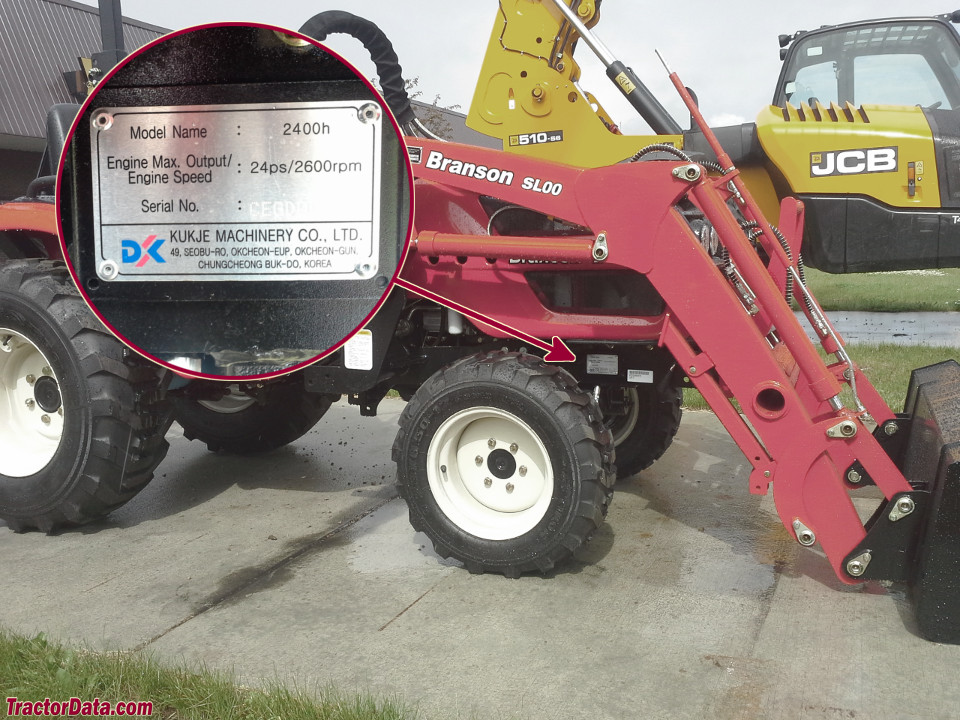

| Location: | Serial number plate on the right side of the Branson 2400 tractor frame, above the front axle.
|
photo of 2400 serial number
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
