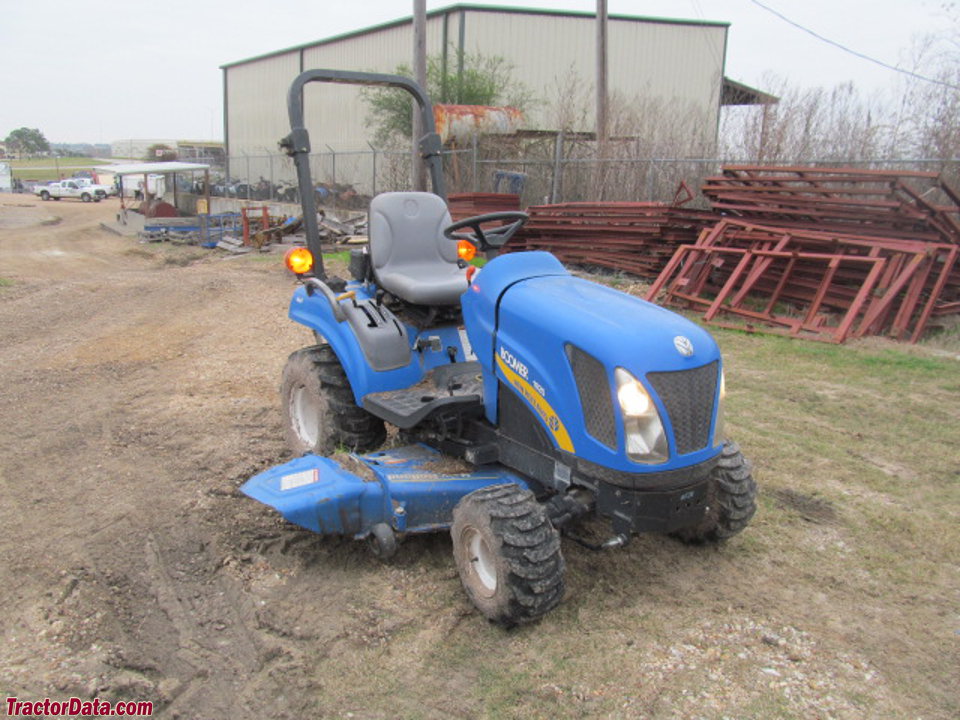

New Holland Boomer 1025
| | 2008 - 2011 |
| Sub-Compact Utility tractor |
|
| Production |
| Manufacturer: | New Holland
|
| Type: | Sub-Compact Utility tractor
|
| Original price: | $11,286 (2009 )
|
| New Holland Boomer 1025 Power |
| Engine (gross): | 26 hp
19.4 kW
|
| PTO (claimed): | 19.7 hp
14.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Foldable ROPS. Canopy optional.
|
| Transmission: | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 1849 psi
127.5 bar
|
| Pump flow: | 3.75 gpm
14.2 lpm
|
| Total flow: | 5.6 gpm
21.2 lpm
|
| Steering flow: | 1.85 gpm
7.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 1,580 lbs
716 kg
|
| Rear lift (at 24"/610mm): | 700 lbs
317 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid PTO: | independent
|
| Mid RPM: | 2,200
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 40
|
| Battery CCA: | 325
|
| Battery volts: | 12
|
| Page information |
| Last update: | December 21, 2016
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
