New Holland TN70A
|
|
| Production | |
| Manufacturer | New Holland |
| Utility tractor | |
| Built in Jesi, Italy | |
| New Holland TN70A Engine | |
| Iveco 2.9L 3-cyl diesel | |
| Fuel tank | 23 gal 87.1 L |
 Engine details ... | |
| New Holland TN70A Transmissions | |
| 8-speed constant mesh with mechanical shuttle | |
| 12-speed partially synchronized with mechanical shuttle | |
| 16-speed partially synchronized with mechanical shuttle | |
| 16-speed partially synchronized with power shuttle | |
 Transmission details ... |
| New Holland TN70A Power | |
| Engine (gross) | 70 hp 52.2 kW |
| Engine (net) | 67 hp 50.0 kW |
| PTO (claimed) | 57 hp 42.5 kW |
| Drawbar (tested) | 51.6 hp 38.5 kW |
| PTO (tested) | 60.7 hp 45.3 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Steering | hydrostatic power |
| Differential wet disc brakes | |
| ROPS. Canopy optional | |

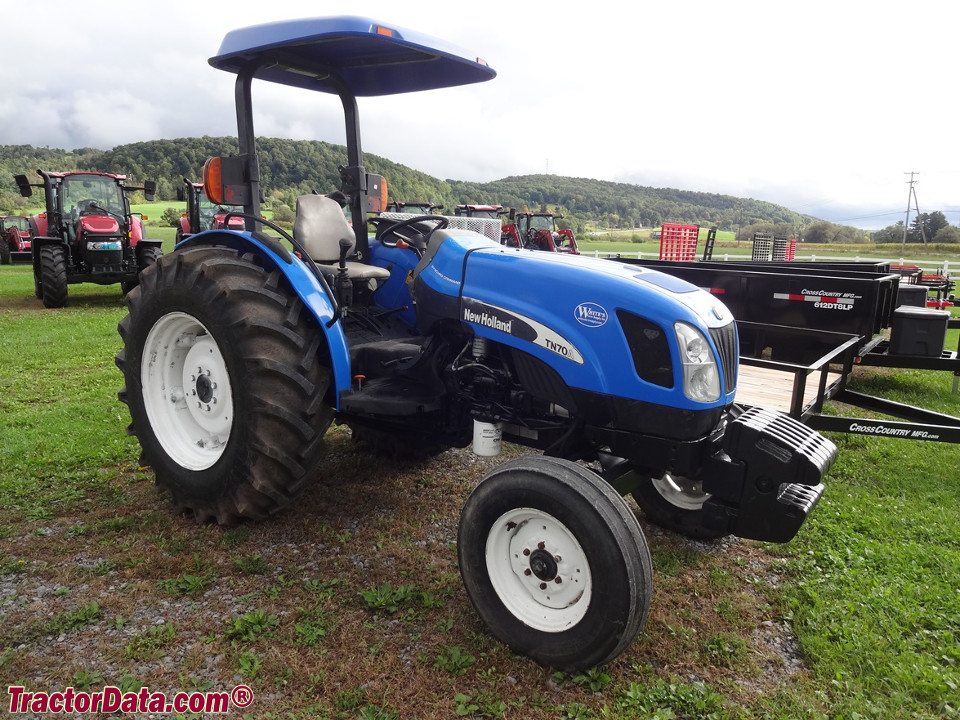

| Photos | |
 | |
 New Holland TN70A photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2755 psi 190.0 bar |
| Valves | 1 to 4 |
| Pump flow | 12.8 gpm 48.4 lpm |
| 16.9 gpmOptOptional 64.0 lpm | |
| Steering flow | 7.4 gpm 28.0 lpm |
| 9.4 gpm (with power shuttle) 35.6 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift (at 24"/610mm) | 3960 lbs 1796 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 81.5 inches 207 cm |
| 4WD Wheelbase | 78.9 inches 200 cm |
| Weight | 5020 to 5975 pounds |
 Full dimensions and tires ... | |
| New Holland TN70A attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 65 |
| Battery CCA | 730 |
| Battery volts | 12 |
| References | |
 | |
| TN-A Series Utility Tractors published in 2005, by New Holland | |
| TN-A Series Utility Tractors published in 2006, by New Holland |
