Cub Cadet Ex2900


Cub Cadet Ex2900 tractor photo
2008 - 2011
Ex Series
Compact Utility tractor
Yanmar built
Series map:
Ex2900
Ex3200
28.7hp
32.0hp
Production
DistributorCub Cadet
ManufacturerYanmar
Compact Utility tractor
Original price$16,289 (2009)
Cub Cadet Ex2900 Engine
Yanmar 1.6L 3-cyl diesel
Fuel tank6.3 gal
23.8 L
Engine details ...
Cub Cadet Ex2900 Power
Engine28.7 hp
21.4 kW
PTO (claimed)22.7 hp
16.9 kW
Mechanical
Four-wheel drive
Steeringpower
Wet disc brakes
Foldable ROPS standard. Optional steel cab.
Hydraulics
Typeopen center
Pump flow5.6 gpm
21.2 lpm
Total flow9.9 gpm
37.5 lpm
Steering flow4.3 gpm
16.3 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)1,100 lbs
498 kg
Power Take-off (PTO)
Rear PTOlive
Rear RPM540
Mid RPM2100
Dimensions & Tires
Wheelbase61 inches
154 cm
Weight2,550 lbs
1156 kg
Front tire7-14
Rear tire11.2-24
Full dimensions and tires ...
Ex2900 Serial Numbers
Ex2900 Serial Location

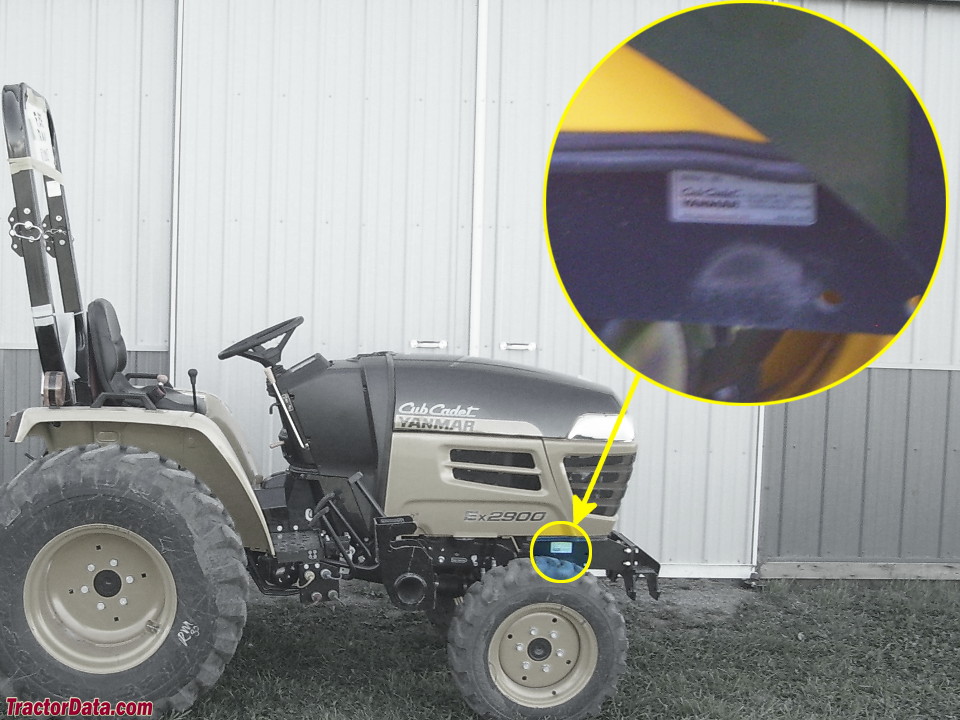

Cub Cadet Ex2900 serial number location
Serial number tag on the right side of the Cub Cadet Yanmar Ex2900, above the front axle.
Electrical
Groundnegative
Battery volts12
References
Ex2900 references literature
Compact Tractors published in 2010, by Cub Cadet
Ex Series published in 2009, by Cub Cadet
