Oliver 1950-T

Oliver 1950-T tractor photo
1967 - 1969
50 Series
Row-Crop tractor
Series map:
*Estimated engine power for comparison only.
Row-Crop tractor
Oliver 1950-T Engine
Waukesha-Oliver 5.1L 6-cyl diesel
Fuel tank27.5 gal
104.1 L
 78 gal (fender tanks)
295.2 L
Engine details ...
Oliver 1950-T Transmissions
6-speed gear
12-speed two-speed power shift
18-speed partial power shift
Transmission details ...
Oliver 1950-T Power
PTO (claimed)105 hp
78.3 kW
Drawbar (tested)89.10 hp
66.4 kW
PTO (tested)105.24 hp
78.5 kW
Performance test details ...
Two- or four-wheel drive
Steeringhydraulic power
Differential disc brakes
Open operator station. Optional cab.
Typeopen center
Pressure2050 psi
141.3 bar
Pump flow16.7 gpm
63.2 lpm
Tractor hitch
Rear TypeII
Controlposition and lower-link draft control
Rear lift (at ends)6000 lbs
2721 kg
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase109.1 inches
277 cm
Weight10460 to 11490 pounds
Full dimensions and tires ...

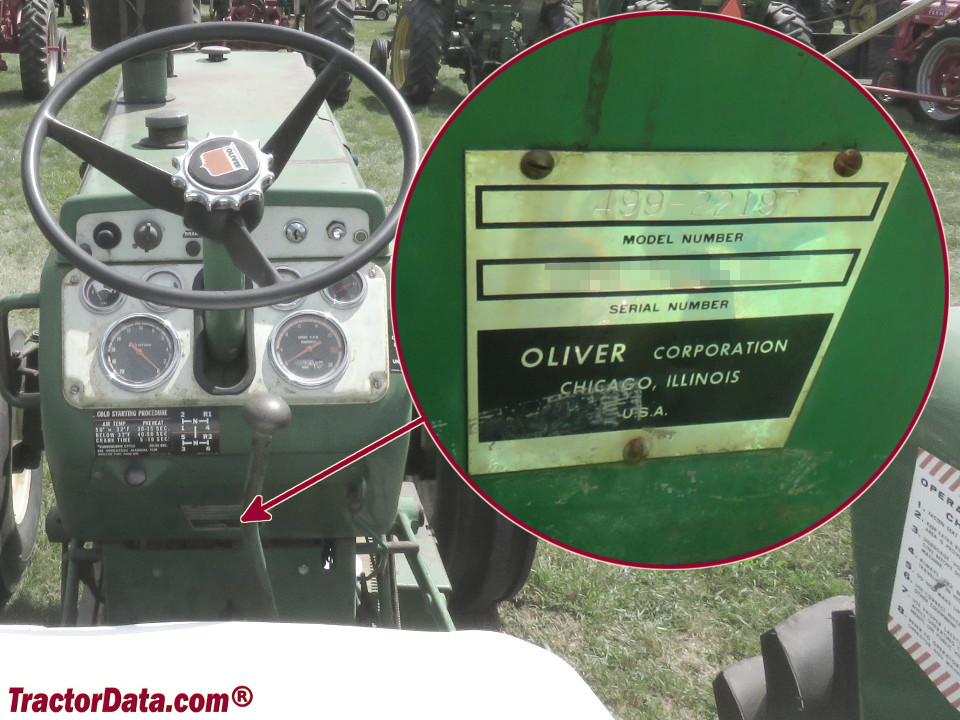

1950-T Serial Number Location
Oliver 1950-T serial number location
Serial number plate below the tractor's instrument panel.
1950-T Serial Numbers

FAQ: How to read a serial number table.
1950-T references literature
Turbocharged Tractors 2150 and 1950-T published in 1968, by Oliver
1950-T published in 1968, by Oliver
Farm Loaders published in 1969, by Oliver
