Tractors > New Holland > T4040

New Holland T4040 Tests



New Holland T4040 tractor photo
2008 - 2011
T4000 Series
Utility tractor
Series:T4030 ← T4040 → T4050
T4.105 ↓
OCED Tractor Test 2477

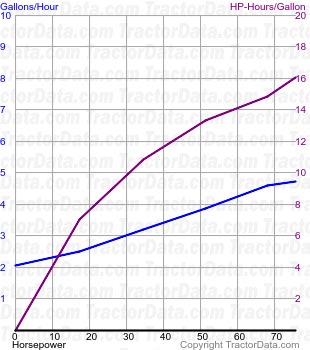

T4040 fuel use from test 723
OCED Tractor Test 2477
Diesel 12-speed 4WD
July 2008 - September 2008,
Link: OCED Tractor Test 2477 file
PTO performance
Power at rated engine speed:75.2 hp
56.1 kW
Fuel use:4.7 gal/hour
17.8 l/hour
Power at rated PTO speed:74.6 hp
55.6 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power:63.2 hp
47.1 kW
Fuel use:4.6 gal/hour
17.4 l/hour
Gear 3M used for power test.
Max pull:6,385 lbs
2896 kg
Gear 3L used for pull test.
OCED Tractor Test 2476
T4040 fuel use from test 724
OCED Tractor Test 2476
Diesel 16-speed 4WD
July 2008 - September 2008,
Link: OCED Tractor Test 2476 file
PTO performance
Power at rated engine speed:75.4 hp
56.2 kW
Fuel use:4.7 gal/hour
17.8 l/hour
Power at rated PTO speed:74.3 hp
55.4 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power:64.0 hp
47.7 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Gear 3MH used for power test.
Max pull:7,285 lbs
3304 kg
Gear 1MH used for pull test.
Page information
Last update:March 10, 2016
