Tractors > New Holland > T4030

New Holland T4030 Tests



New Holland T4030 tractor photo
2008 - 2011
T4000 Series
Utility tractor
Series:T4020 ← T4030 → T4040
T4.95 ↓
OCED Tractor Test 2454

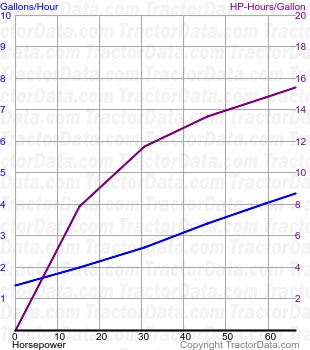

T4030 fuel use from test 721
OCED Tractor Test 2454
Diesel 12-speed 4WD
April 2008 - 2008,
Link: OCED Tractor Test 2454 file
PTO performance
Power at rated engine speed:66.4 hp
49.5 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Power at rated PTO speed:65.3 hp
48.7 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power:56.5 hp
42.1 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Gear 3M used for power test.
Max pull:6,270 lbs
2844 kg
Gear 3L used for pull test.
OCED Tractor Test 2455

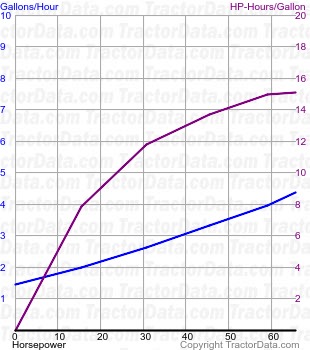

T4030 fuel use from test 722
OCED Tractor Test 2455
Diesel 16-speed 4WD
April 2008 - May 2008,
Link: OCED Tractor Test 2455 file
PTO performance
Power at rated engine speed:65.6 hp
48.9 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Power at rated PTO speed:64.7 hp
48.2 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power:57.1 hp
42.6 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Gear 3MH used for power test.
Max pull:7,005 lbs
3177 kg
Gear 1MH used for pull test.
