CaseIH Farmall 90

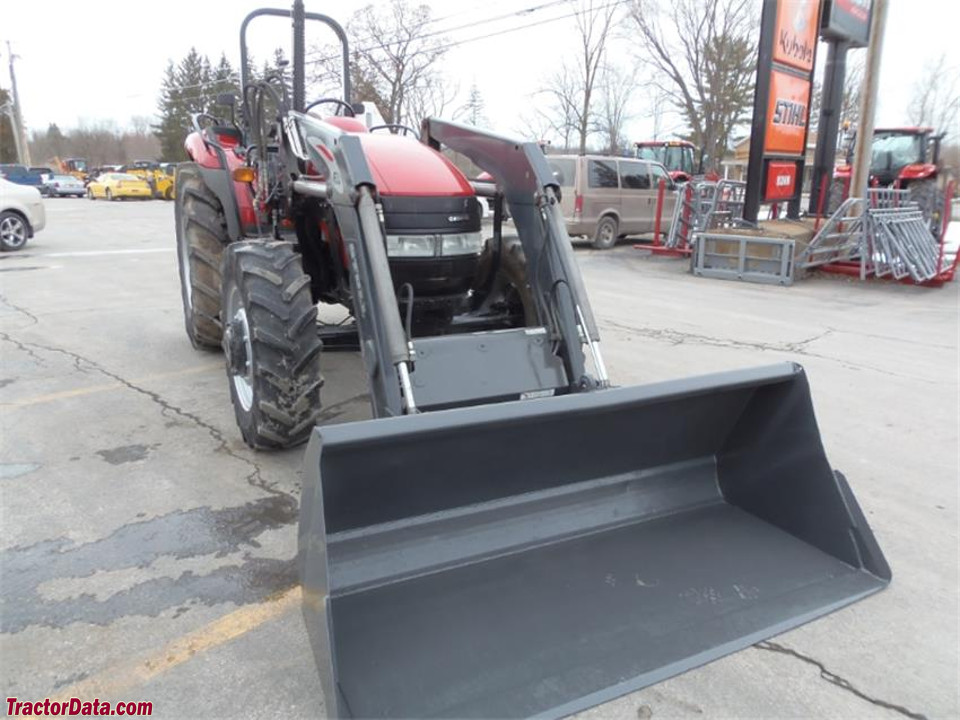

CaseIH Farmall 90 tractor photo
2008 - ????
Farmall Utility Series
Utility tractor
Turk Tractor built
JX90
Series:Farmall 80Farmall 90Farmall 95
Production
Distributor:CaseIH
Manufacturer:Turk Tractor
Type:Utility tractor
Factory:Ankara, Turkey
CaseIH Farmall 90 Power
Engine (gross):84 hp
62.6 kW
PTO (claimed):70 hp
52.2 kW
Drawbar (tested):65.2 hp
48.6 kW
PTO (tested):73.5 hp
54.8 kW
power test details ...
CaseIH Farmall 90 Engine
FPT 4.5L 4-cyl diesel
Fuel tank:23.8 gal
90.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical rear lock
Steering:power
Brakes:hydraulic wet disc
Cab:Flat deck platform with ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 20-speed mechanical shuttle with creeper
Transmission details ...
Hydraulics
Type:open center
Pressure:2755 psi
190.0 bar
Rear valves:1 to 3
Pump flow:13.6 gpm
51.5 lpm
Total flow:21.7 gpm
82.1 lpm
Steering flow:8.1 gpm
30.7 lpm
Tractor hitch
Rear Type:2
Control:position control and mechanical lower-link draft sensing
Rear lift (at 24"/610mm):5,025 lbs
2279 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:mechanical dry clutch
Rear RPM:540
Dimensions & Tires
2WD Wheelbase:91 inches
231 cm
4WD Wheelbase:87 inches
220 cm
Weight:5702 to 6915 pounds
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:85
Battery CCA:800
Battery volts:12
